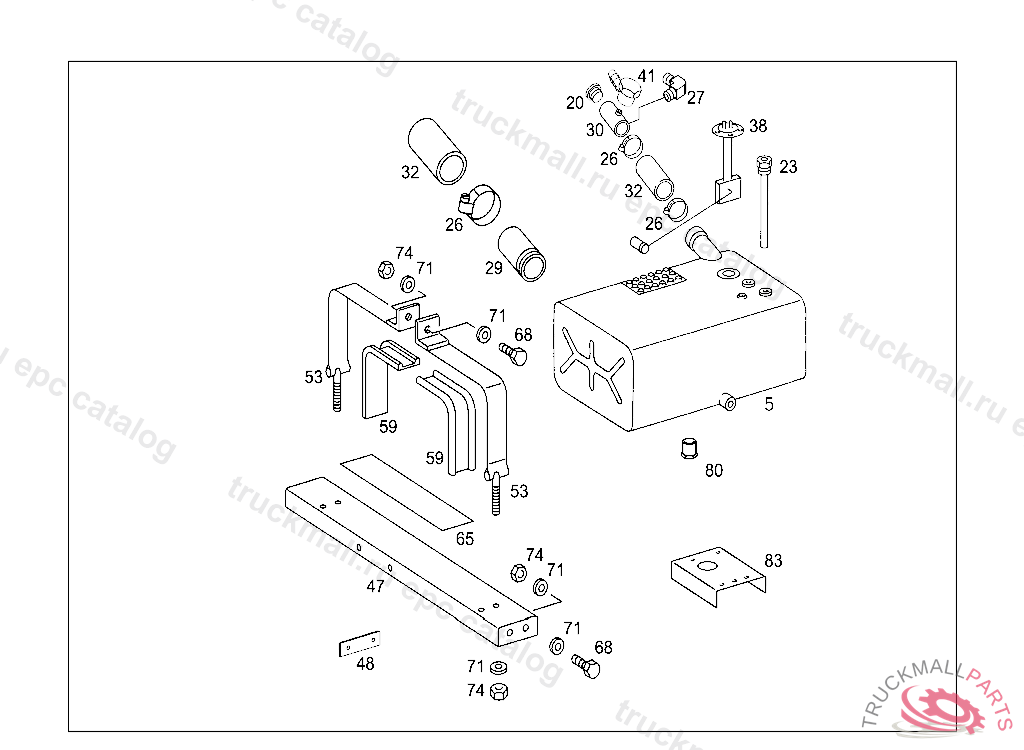

Поз.
Артикул
Описание
5
FUEL TANK
5
FUEL TANK54 GAL
5
FUEL TANK , Replaced By: A6854700201
5
FUEL TANK88 GAL
5
FUEL TANK88 GAL
20
FILLER CAP , Replaced By: QT03-33903-001
20
FILLER CAP
20
FILLER CAP , Replaced By: QT03-33903-001
23
SUCTION LINE
26
CLAMP
27
ELBOW FITTING90GR 12NYLX12MPT
29
LINE
30
HOSE , Replaced By: A6854700020
30
FILLER NECK
32
HOSE
38
SENDER UNIT
41
CHECK VALVE (RELIEF VALVE)
47
BRACKET
53
STRAP
59
LEDGE
65
LEDGE
68
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
71
PART NAME MISSING CONSOLE TO FRAME 1/2
74
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
999
ANGLE STRAP
999
CLAMPING SCREW STRAP
999
STRAP STRAP
