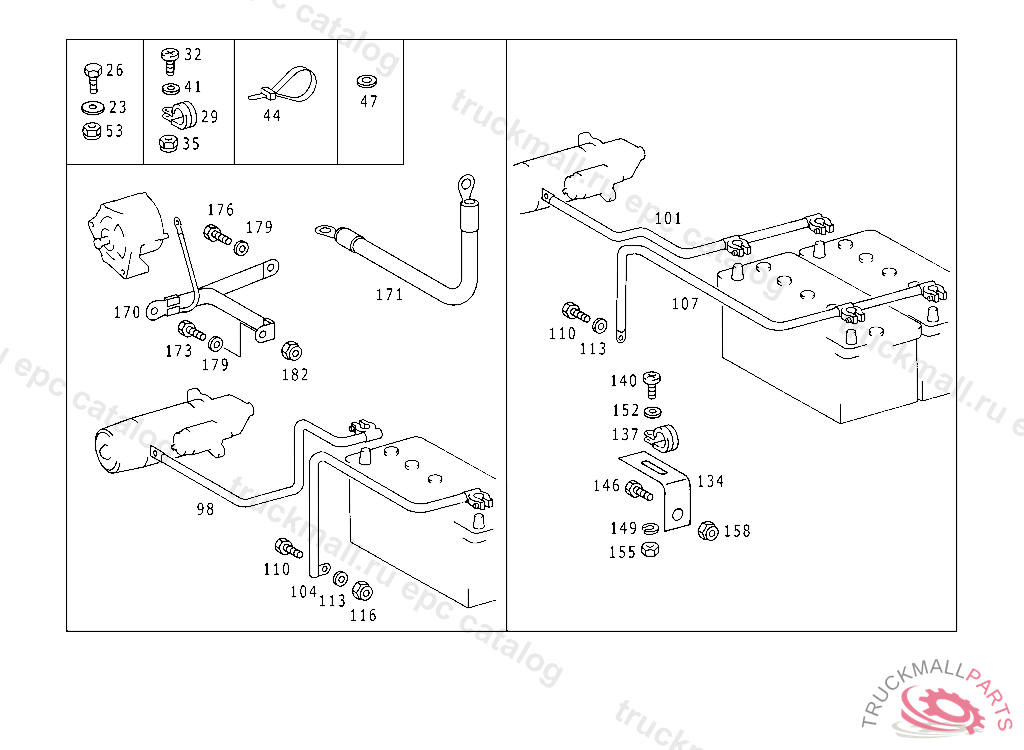

Поз.
Артикул
Описание
44
LOOM TIE
44
LOOM TIE LINE TO BRACKET 508 MM
98
POSITIVE CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
104
NEG. CABLE FROM BATTERY TO FRAME
110
SCREW GROUND CABLE
113
WASHER GROUND CABLE
134
BRACKET BATTERY CABLE MOUNTING
137
CLAMP BATTERY CABLE TO BRACKET
140
SCREW BRACKET AND CLAMP M6X20
146
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
155
NUT , Replaced By: N913023006001
158
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
170
NEG. CABLE FROM ENGINE TO FRAME,D 654532
171
NEG. CABLE FROM FRAME TO CAB,D 339846
173
SCREW GROUND CABLE
173
SCREW GROUND CABLE
999
GROMMET , Replaced By: A4069975081
999
BRACKET
999
BRACKET BATTERY CASE
999
BRACKET
999
WASHER FUSE TO FUSE BOX
999
SCREW BRACKET MOUNTING
999
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
999
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
999
NUT SENDER UNIT
999
NUT RELAY TO BRACKET M5
