Поз.
Артикул
Описание
5

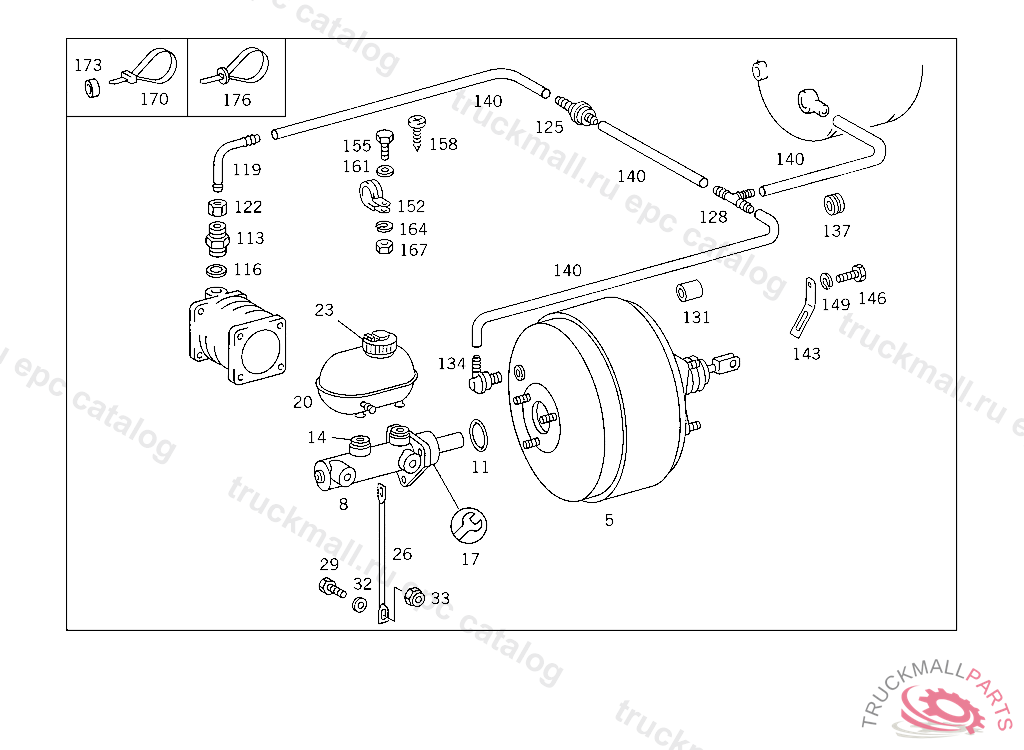

BRAKE BOOSTER ASSEMBLY
8
BRAKE MASTER CYLINDER
11
SEAL RING
14
SEAL CAP
17
REPAIR KIT TANDEM BRAKE MASTER CYLINDER
20
RESERVOIR BRAKE FLUID
23
FILLER CAP
26
WEB BRAKE BOOSTER ASSEMBLY TO FIRE WALL
26
WEB BRAKE CYLINDER
29
SCREW WEB TO CAB SIDE MEMBER
32
WASHER TRAILER PLUG SOCKET TO BRACKET
113
FITTING VACUUM LINE TO VACUUM PUMP
116
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
119
CONNECTOR (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER
122
UNION NUT RETURN LINE
125
VALVE (CHECK VALVE)
125
VALVE , Replaced By: A0004316107
125
VALVE (CHECK VALVE)
125
VALVE (CHECK VALVE)
128
T-FITTING
131
RUBBER RING PROTECTION AGAINST SCORING FOR PIPE LINE
134
VALVE
134
VALVE
137
GROMMET ,D 314239
140
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
152
CLAMP WIRE CABLE TO SIDE MEMBER AND TO TRANSMISSION
158
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
173
WASHER , Replaced By: A3609902340
176
LOOM TIE LINE MOUNTING
