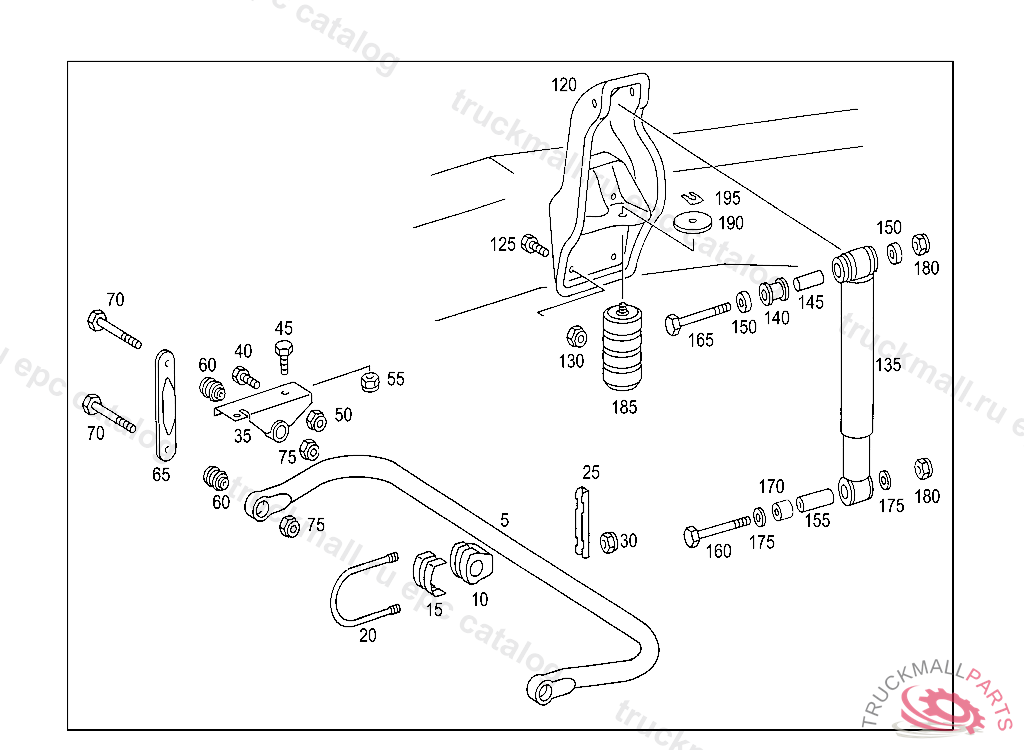

Поз.
Артикул
Описание
5
TORSION BAR
5
TORSION BAR , Replaced By: A6883200711
10
RUBBER MOUNTING TORSION BAR TO FRONT AXLE
10
RUBBER MOUNTING TORSION BAR TO FRONT AXLE
15
BRACKET TORSION BAR TO FRONT AXLE
20
CLAMP TORSION BAR TO FRONT AXLE
25
BRACKET TORSION BAR TO FRONT AXLE
30
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
30
NUT BRACKET TO SIDE MEMBER M12X1.5
35
BRACKET , Replaced By: A6883200343
35
BRACKET , Replaced By: A6883200443
40
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
45
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
50
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
55
NUT BRACKET TO SIDE MEMBER M12X1.5
60
BEARING BRACKET TO SHACKLE
60
BEARING
60
BEARING SHACKLE TO STABILIZER, Replaced By: A9793200173
60
BEARING BRACKET TO SHACKLE
65
SHACKLE
70
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
70
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
70
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
75
NUT BRACKET TO SIDE MEMBER M12X1.5
120
CONSOLE RIGHT SHOCK ABSORBER
120
CONSOLE LEFT SHOCK ABSORBER
125
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
125
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
130
NUT BRACKET TO SIDE MEMBER M12X1.5
135
SHOCK ABSORBER FRONT AXLE, ONLY REPLACEABLE BY PAIRS
140
RUBBER MOUNTING TOP AND BOTTOM
145
BUSHING TOP
150
SPACER TUBE RUBBER PAD
155
BUSHING BOTTOM
160
HEXAGON HEAD BOLT AT FRAME, REAR M14X1.5X150
165
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
170
SPACER TUBE SHOCK ABSORBER TO FRONT AXLE
175
WASHER SHOCK ABSORBER TO FRONT AXLE
180
NUT SUPPORT TO FRAME
185
RUBBER SPRING FRONT SPRING STOP
190
WASHER RUBBER SPRING TO BRACKET
195
BRACKET RUBBER SPRING TO BRACKET
