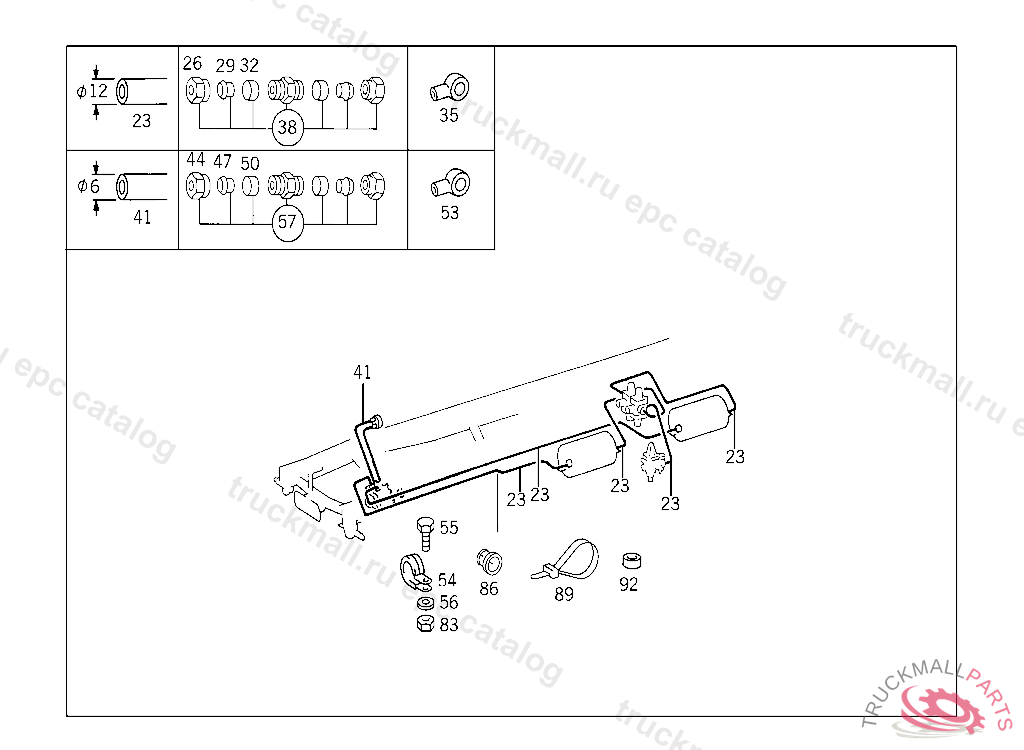

Поз.
Артикул
Описание
23
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
23
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
23
HOSE , Replaced By: A0009872827
26
UNION NUT LINE CONNECTION, Replaced By: N000000006239
29
GLAND , Replaced By: A0019901967
32
SLEEVE LINE CONNECTION
35
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
38
FITTING , Replaced By: A0029906171
41
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
44
UNION NUT
47
GLAND , Replaced By: A0019901667
50
SLEEVE LEAK LINE
53
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
53
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
54
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
54
CLAMP HOSE TO FLANGE AND TO VALVE
55
SCREW CLAMP TO BRACKET M 6X25
56
WASHER PLUG SOCKET TO BRACKET
57
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
83
NUT
89
LOOM TIE PIPE ELBOW TO COMPRESSOR
89
LOOM TIE LINE MOUNTING
89
LOOM TIE ELECTRIC CABLE MOUNTING
89
LOOM TIE 79X57 MM
89
LOOM TIE , Replaced By: A3459977390
92
WASHER , Replaced By: A3609902340
