Поз.
Артикул
Описание
5

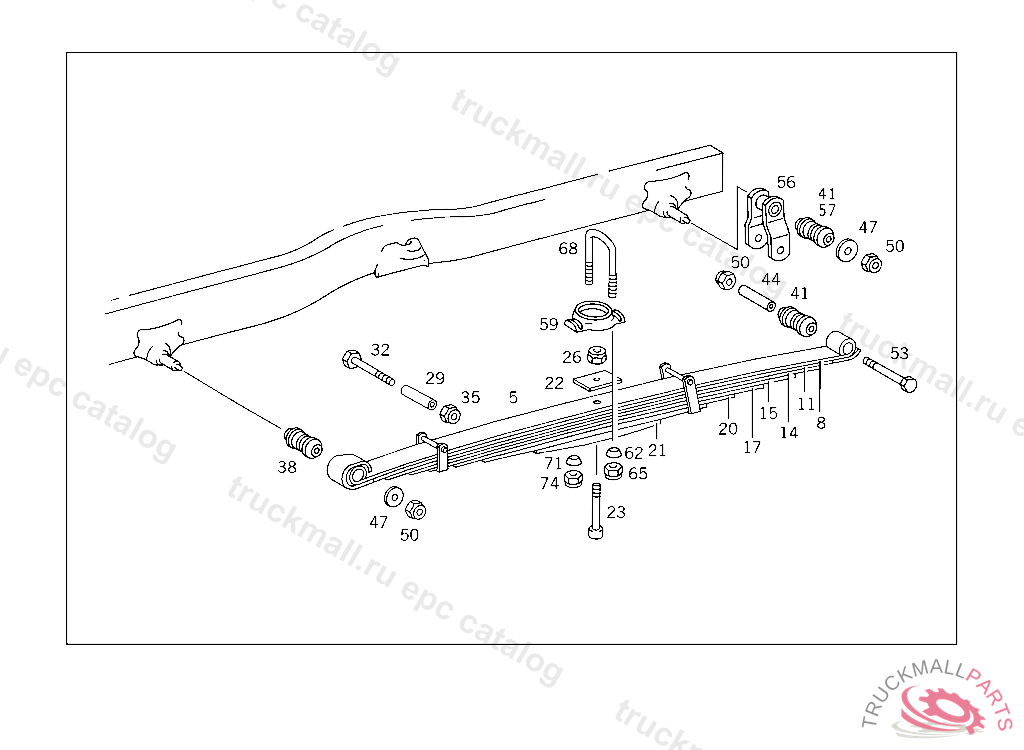

REAR SPRING 6-LEAF,B 981839
8
SPRING LEAFNO.1, TO 688 320 75 06/04 06,B 981839
11
SPRING LEAFNO.2, TO 688 320 75 06/04 06,B 981839
14
SPRING LEAFNO.3, TO 688 320 75 06/04 06,B 981839
15
SPRING LEAFNO.4, TO 688 320 75 06/04 06,B 981839
17
SPRING LEAFNO.5, TO 688 320 75 06/04 06,B 981839
20
SPRING LEAFNO.6, TO 688 320 75 06/04 06,B 981839
23
SPRING BOLT AIR BRAKE M10X130 MM
23
SPRING BOLT HYDRAULIC BRAKE M10X125 MM
26
NUT SPRING BOLT
29
SPACER TUBE , Replaced By: A0003213253
32
SCREWM 8X90
35
NUT HORN TO BRACKET M8
38
RUBBER BUFFER SPRING EYE,FRONT
41
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
44
SPACER TUBE REAR SPRING TO SPRING SHACKLE
47
WASHER REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET
50
NUT , Replaced By: N910113018004
53
SCREW REAR SPRING TO SPRING SHACKLE
56
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
56
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
57
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
59
PLATE FRONT SPRINGS TO FRONT AXLE
68
U-BOLT HYDRAULIC BRAKE M16X1,5X180 MM,B 981839
68
U-BOLT AIR BRAKE M16X1,5X190 MM
71
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
74
NUT REAR AXLE TO TO REAR SPRINGS,B 825283
