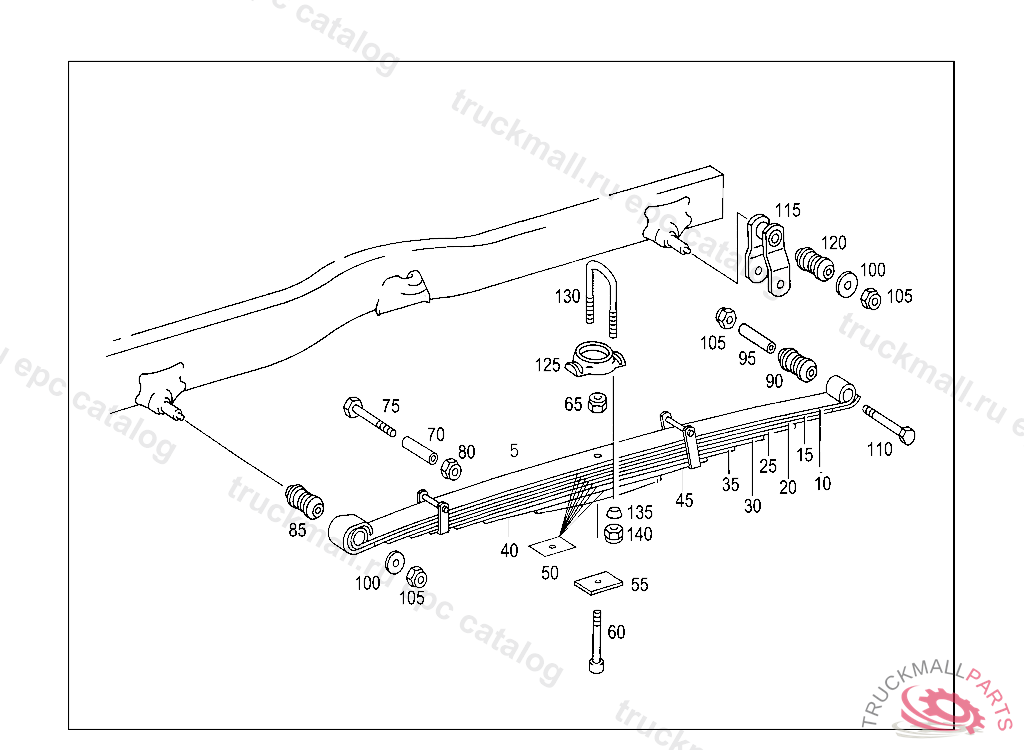

Поз.
Артикул
Описание
5
REAR SPRING 6-LEAF,B 981839
5
REAR SPRING 6-LEAF
10
SPRING LEAFNO.1, TO 688 320 75 06/04 06,B 981839
15
SPRING LEAFNO.2, TO 688 320 75 06/04 06,B 981839
20
SPRING LEAFNO.3, TO 688 320 75 06/04 06,B 981839
25
SPRING LEAFNO.4, TO 688 320 75 06/04 06,B 981839
30
SPRING LEAFNO.5, TO 688 320 75 06/04 06,B 981839
35
SPRING LEAFNO.6, TO 688 320 75 06/04 06,B 981839
50
SPACER
55
SPACER
60
SPRING BOLTM10X115
65
NUT SPRING BOLT
70
SPACER TUBE , Replaced By: A0003213253
75
SCREWM 8X90
80
NUT HORN TO BRACKET M8
85
RUBBER BUFFER SPRING EYE,FRONT
90
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
95
SPACER TUBE REAR SPRING TO SPRING SHACKLE
100
WASHER REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET
105
NUT STABILIZER TO FRONT AXLE
105
NUT TORSION BAR TO BEARING BRACKET,5 904661
110
SCREW REAR SPRING TO SPRING SHACKLE
115
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
120
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
125
PLATE FRONT SPRINGS TO FRONT AXLE
130
U-BOLT REAR SPRING TO REAR AXLE M 16X1,5X210MM
130
U-BOLT HYDRAULIC BRAKE M16X1,5X180 MM,B 981839
135
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
140
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
