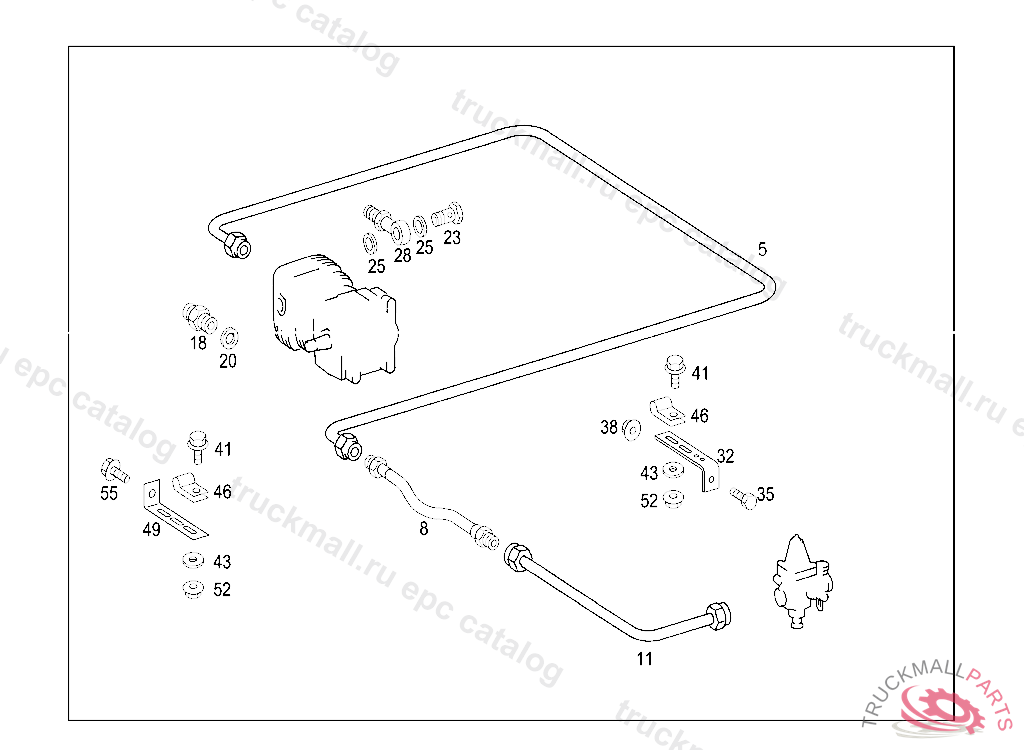

Поз.
Артикул
Описание
5
LINE FROM AIR COMPRESSOR TO DOUBLE FITTING
8
BRAKE HOSE
11
LINE FROM DOUBLE FITTING TO PRESSURE REGULATOR
18
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
20
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
32
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
35
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
38
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
41
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
43
LOCK WASHER CABLE TO FUSE BOX
46
CLAMP , Replaced By: A6739950001
52
NUT , Replaced By: N913023006001
