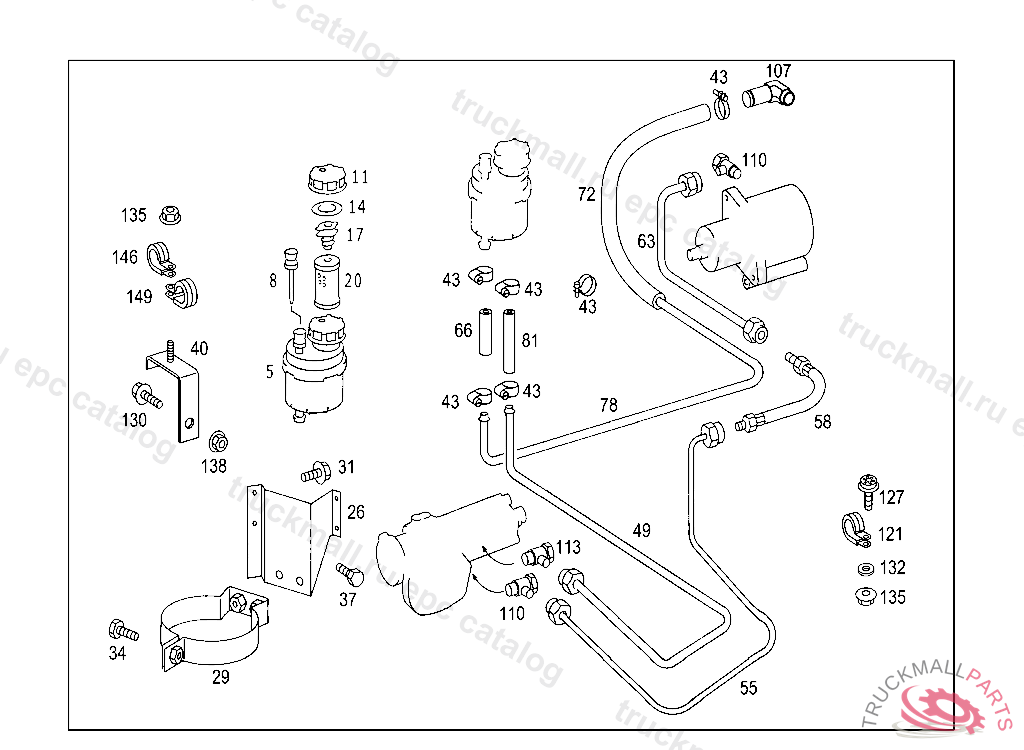

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
26
BRACKET OIL TANK
29
STRAP OIL TANK
31
HEXALOBULAR BOLT. SCREW STRAP TO BRACKET M 10X20
34
HEXALOBULAR BOLT. SCREW OIL TANK TO STRAP M 10X30
37
SCREW CLAMP MOUNTING M 6X16
40
BRACKET OIL LINE TO FRAME,D 523394
43
CLAMP , Replaced By: N000000000667
49
55
LINE FROM HIGH PRESSURE HOSE TO STEERING,D 563943
58
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
58
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
58
HOSE DELIVERY LINE TO PUMP
63
66
HOSE FROM OIL TANK TO SUCTION LINE
72
78
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
81
HOSE
107
107
FITTING LINE TO OIL PUMP
110
SCREW CONNECTION DELIVERY LINE TO PUMP
113
SCREW CONNECTION RETURN, FROM STEERING TO OIL TANK
121
CLAMP BRAKE HOSE BRACKET
127
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
130
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
132
WASHER , Replaced By: N009021006208
135
NUT BRACKET TO FIRE WALL
138
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
146
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
149
CLAMP BRAKE HOSE BRACKET
