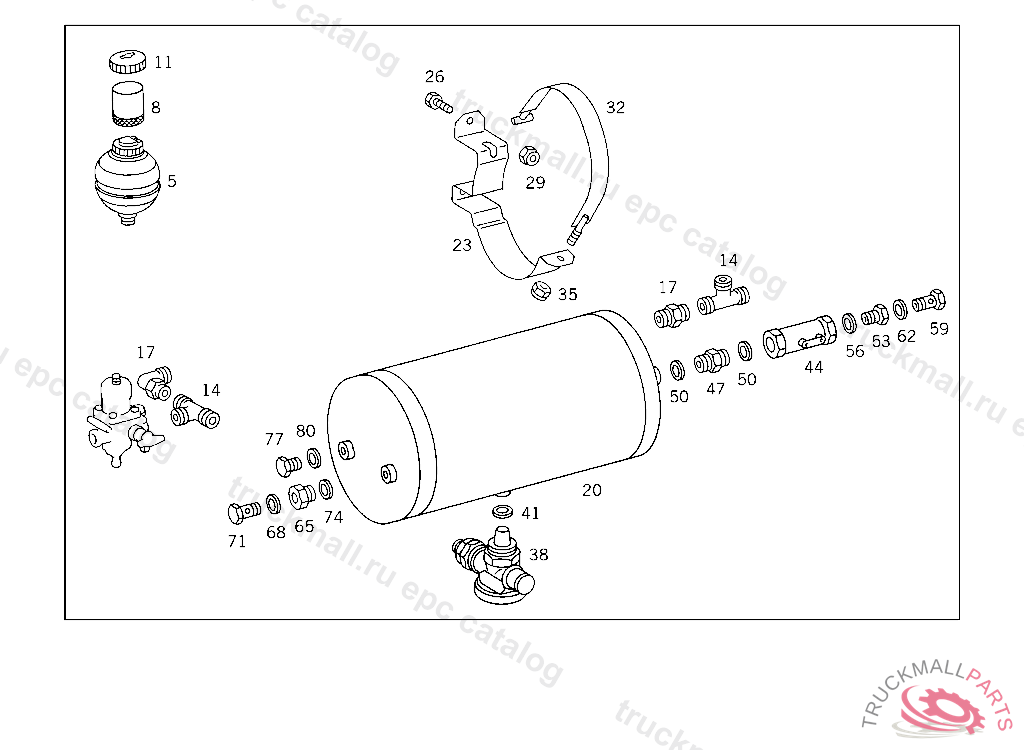

Поз.
Артикул
Описание
5
RESERVOIR RESERVOIR
8
STRAINER
11
COVER
14
T-FITTING PRESSURE REGULATOR,CONNECTION: "1"
17
FITTING , Replaced By: A0019909871
20
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
23
BRACKET AIR RESERVOIR
23
BRACKET , Replaced By: A9794300010
26
SCREW , Replaced By: N304017010040
29
NUT BRACKET TO SIDE MEMBER,XB209706
32
STRAP AIR RESERVOIR
35
NUT BRACKET TO SIDE MEMBER,XB209706
38
VALVE DRAIN 20 L
41
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
44
VALVE (CHECK VALVE)
44
VALVE (CHECK VALVE)
44
VALVE (CHECK VALVE)
44
VALVE (CHECK VALVE)
44
VALVE (CHECK VALVE)
44
VALVE (CHECK VALVE)
47
CONNECTOR AIR RESERVOIR
50
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
53
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
56
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
59
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
62
SEAL RINGTO 006 997 00 72
65
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
68
SEAL RINGTO 006 997 00 72
71
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
74
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
77
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
80
SEAL RING LINE CONNECTION
