Поз.
Артикул
Описание

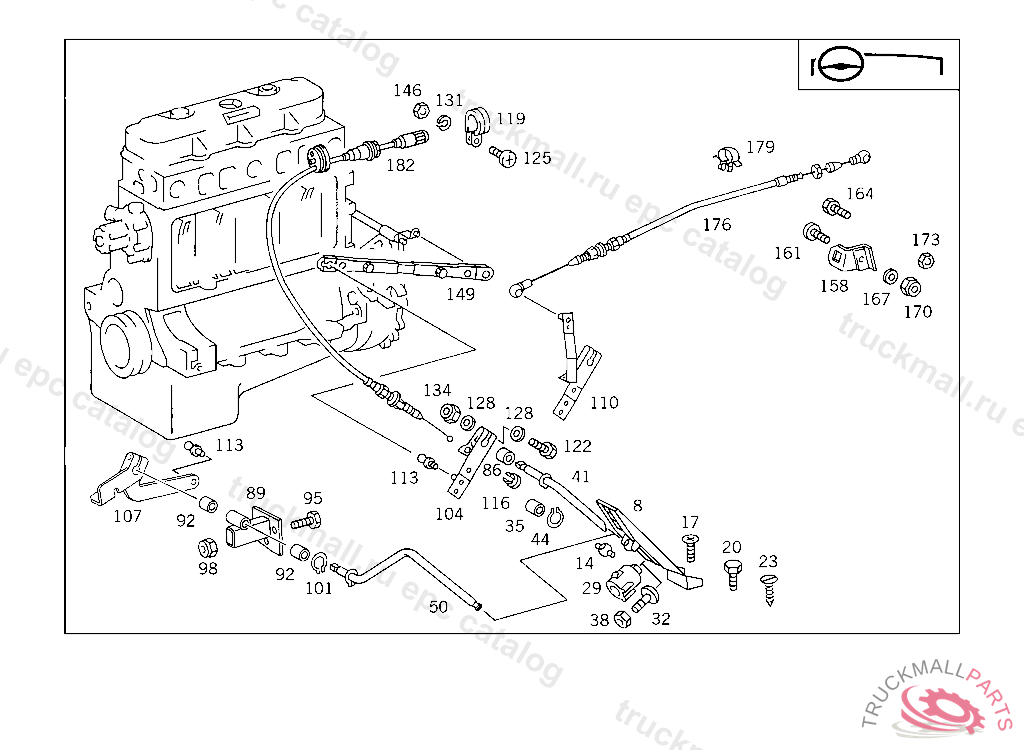

8
ACCELERATOR PEDAL
20
SCREW PEDAL TO CAB FLOOR
23
SHEET METAL SCREW ACCELERATOR PEDAL TO FLOOR PLATE
32
STOP CLUTCH PEDAL STOP
38
NUT BATTERY CASE
50
LEVER (PEDAL LEVER)
89
BEARING BRACKET (CONTROL LEVER)
92
BUSHING ,B 892893
95
SCREW SWITCH TO BRACKET 8X16
98
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
101
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
107
LEVER
113
BALL PIVOT INTERMEDIATE LEVER
116
BUSHING CONTROL LEVER,B 892892
119
CLAMP SENSOR CABLE TO FRONT AXLE
122
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
125
SCREW CABLE HARNESS MOUNTING M6X16
128
WASHER PLUG SOCKET TO BRACKET
131
NUT BRACKET TO FIRE WALL
134
NUT BRACKET TO FIRE WALL
146
NUT
149
ROD
164
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
176
WIRE CABLE
182
WIRE CABLE
