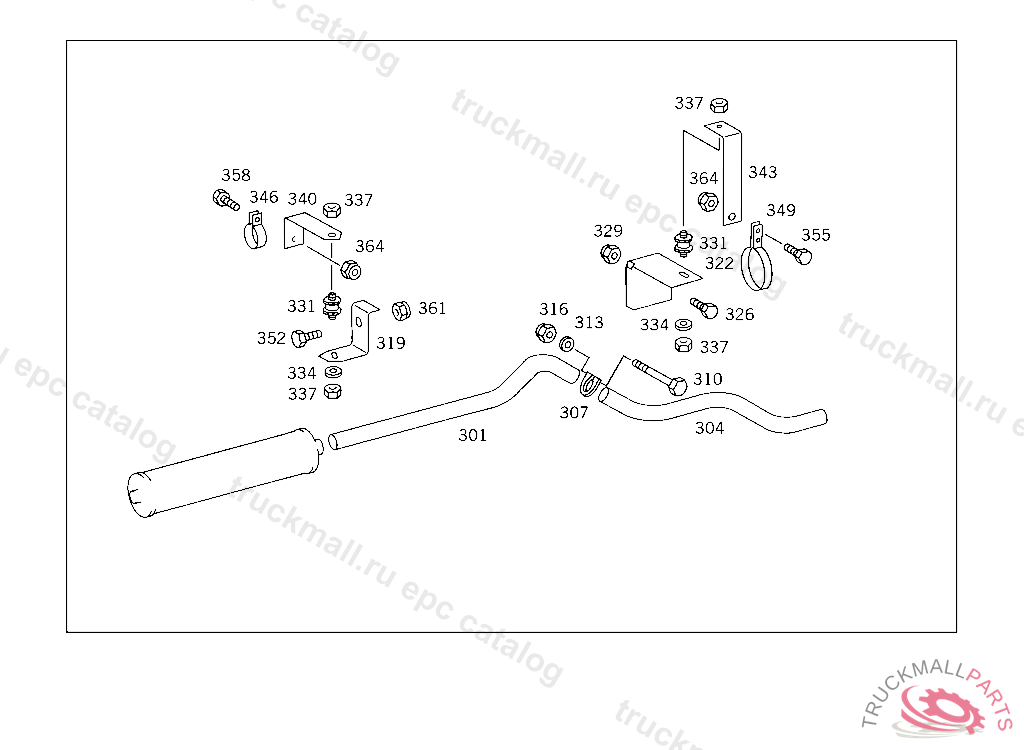

Поз.
Артикул
Описание
301
REAR EXHAUST PIPE ,D 339845
304
REAR EXHAUST PIPE (TAIL PIPE),D 339845
307
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
310
SCREW , Replaced By: N304014008021
313
WASHER TRAILER PLUG SOCKET TO BRACKET
316
NUT , Replaced By: A1201420072
316
NUT HORN TO BRACKET M8
319
BRACKET REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER,D 250888
322
BRACKET ,D 250888
326
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
326
SCREW , Replaced By: N304017010040
326
SCREW ANGLE TO CROSS MEMBER M 10X30
329
NUT BRACKET TO SIDE MEMBER,XB209706
329
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
331
RUBBER BUFFER EXHAUST MUFFLER
334
WASHER GROUND CABLE
337
NUT BRACKET TO RETARDER
340
SUPPORT ,D 250888
343
SUPPORT ,D 250888
346
CLAMP REAR EXHAUST PIPE TO SUPPORT,D 250888
349
CLAMP EXHAUST PIPE TO SUPPORT,D 250888
352
SCREW CROSS MEMBER TO SIDE MEMBERS
355
SCREW SHIFT LEVER TO BRACKET M8X30
355
SCREW LINES TO BRACKET
358
SCREW POWER CYLINDER TO BEARING BRACKET
361
NUT , Replaced By: N910113010004
364
NUT HORN TO BRACKET M8
364
NUT , Replaced By: A1201420072
