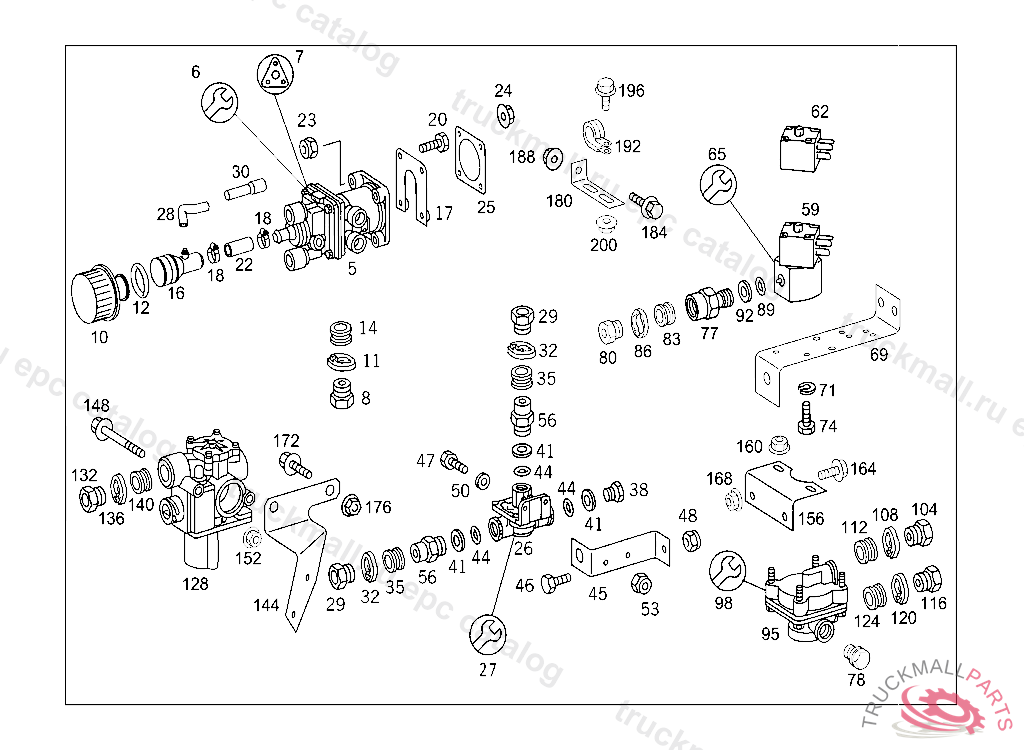

Поз.
Артикул
Описание
5
BRAKE VALVE SERVICE BRAKE KNORR,D 227053
5
BRAKE VALVE SERVICE BRAKE WABCO,D 227053
6
REPAIR KIT SMALL SCOPE TO 695 431 74 04
6
REPAIR KIT LARGE SCOPE TO 695 431 71 04
7
GASKET KIT TWO-CIRCUIT BRAKE VALVE TO 002 431 87 05
8
SCREW. UNION SCREW LINE CONNECTION
11
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
14
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
17
FLANGE SERVICE BRAKE VALVE,D 227053
20
SCREW AIR DUCT TO CAB
23
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
VALVE (QUICK BREATHER VALVE) WABCO
26
VALVE QUICK-RELEASE VALVE KNORR
26
VALVE (QUICK BREATHER VALVE) VARGA
26
VALVE (QUICK BREATHER VALVE) VARGA
26
VALVE , Replaced By: A6934297144
27
REPAIR KITTOA 382 429 70 44, A 693 429 71 44
29
SCREW. UNION SCREW LINE CONNECTION
32
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
35
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
38
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
38
SCREW PLUG
41
THRUST RING LOCKING VALVE
41
THRUST RING CHECK VALVE TO AIR RESERVOIR
44
O-RING CHECK VALVE TO AIR RESERVOIR
44
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
45
BRACKET QUICK-RELEASE VALVE
45
46
SCREW BRACKET TO BUMPER,LEFT M 10X25
47
SCREW BRACKET TO INTAKE MANIFOLD
48
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
WASHER TRAILER PLUG SOCKET TO BRACKET
53
NUT HORN TO BRACKET M8
56
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
