Поз.
Артикул
Описание

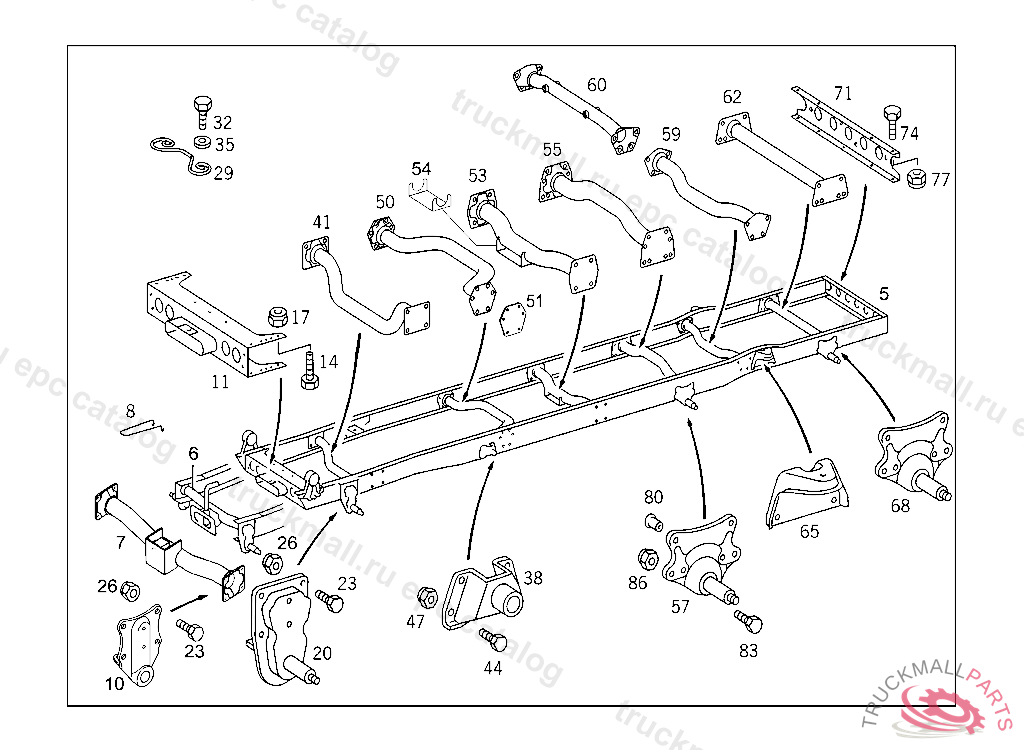

5
6
CROSS MEMBERNO. 1
6
CROSS MEMBER FRONT
8
LOCKING SPRING BOTTOM
10
REAR SUBFRAME (FRONT SPRING BRACKET),FRONT
20
REAR SUBFRAME (FRONT SPRING BRACKET),FRONT
23
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
23
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
26
NUT BRACKET TO SIDE MEMBER M12X1.5
26
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
38
REAR SUBFRAME (FRONT SPRING BRACKET),REAR
44
SCREW BRACKET TO SIDE MEMBER M10X35
44
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
47
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
50
51
53
55
CROSS MEMBERNO. 5
57
SPRING BRACKET (REAR SPRING BRACKET),FRONT
59
CROSS MEMBER SHOCK ABSORBER NO.6
62
CROSS MEMBER SHOCK ABSORBER NO.7
65
BRACKET HELPER SPRING
65
BRACKET HELPER SPRING
68
SPRING BRACKET (REAR SPRING BRACKET),REAR M18X1,5 MM
71
CROSS MEMBER825 MM
74
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
77
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
80
RIVET10X36 MM
80
RIVET CONSOLE TO SIDE MEMBER 10X26 MM
80
RIVET12X45 MM
80
80
RIVET10X30 MM
83
HEXAGON HEAD BOLT. SCREW PROPELLER SHAFT TO TRANSMISSION
83
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
83
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
83
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
83
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M12 X 1.5 X 40
83
SCREW BRACKET TO SIDE MEMBER M10X35
86
NUT SUPPORT TO FRAME
86
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
86
NUT BRACKET TO SIDE MEMBER M12X1.5
