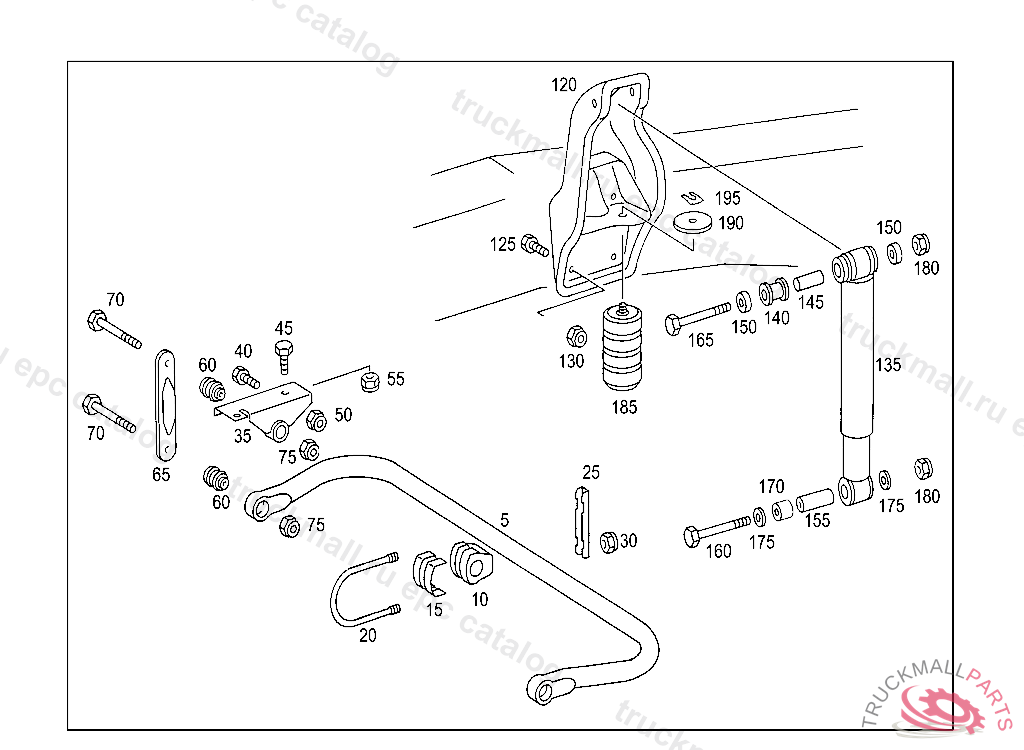

Поз.
Артикул
Описание
5
TORSION BAR
10
RUBBER MOUNTING TORSION BAR TO FRONT AXLE
15
BRACKET TORSION BAR TO FRONT AXLE
20
CLAMP TORSION BAR TO FRONT AXLE
25
BRACKET TORSION BAR TO FRONT AXLE
30
NUT BRACKET TO SIDE MEMBER M12X1.5
35
BRACKET LEFT
35
BRACKET RIGHT
40
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
50
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
60
BEARING SHACKLE TO STABILIZER, Replaced By: A9793200173
60
BEARING BRACKET TO SHACKLE
60
BEARING BRACKET TO SHACKLE
65
SHACKLE
70
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
75
NUT BRACKET TO SIDE MEMBER M12X1.5
120
CONSOLE RIGHT SHOCK ABSORBER
120
CONSOLE LEFT SHOCK ABSORBER
125
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
125
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
130
NUT BRACKET TO SIDE MEMBER M12X1.5
135
SHOCK ABSORBER FRONT AXLE
140
RUBBER RING TOP AND BOTTOM TO A 6883260200
145
BUSHING TOP
150
SPACER TUBE RUBBER PAD
155
BUSHING BOTTOM
160
HEXAGON HEAD BOLT AT FRAME, REAR M14X1.5X150
160
SCREW. HEXAGON HEAD BOLT LEAF SPRING TO RUBBER MOUNTING M14X1.5X150
165
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
170
SPACER TUBE SHOCK ABSORBER TO FRONT AXLE
175
WASHER SHOCK ABSORBER TO FRONT AXLE
180
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
180
NUT SUPPORT TO FRAME
185
RUBBER SPRING FRONT SPRING STOP
185
RUBBER SPRING FRONT SPRING STOP
190
WASHER RUBBER SPRING TO BRACKET
195
BRACKET RUBBER SPRING TO BRACKET
