Поз.
Артикул
Описание
5

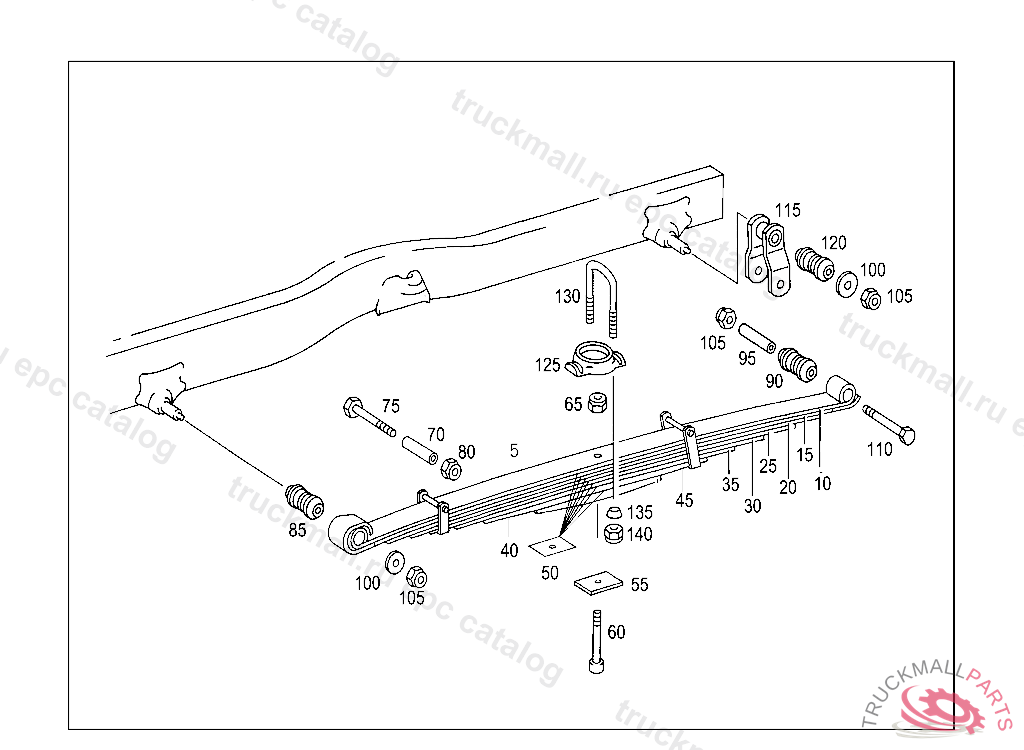

REAR SPRING 8-LEAF
10
SPRING LEAF PARTS KIT N0.1
15
SPRING LEAFN0.2
20
SPRING LEAFN0.3
25
SPRING LEAFN0.4
30
SPRING LEAF PARTS KIT N0.5
35
SPRING LEAFN0.6
40
SPRING LEAFN0.7
45
SPRING LEAF PARTS KIT N0.8
50
SPACER
55
SPACER AT REAR AXLE
60
SPRING BOLT REAR SPRING M10X150
65
NUT SPRING BOLT
70
SPACER TUBE , Replaced By: A0003213253
75
SCREWM 8X90
80
NUT HORN TO BRACKET M8
85
RUBBER BUFFER SPRING EYE,FRONT
90
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
95
SPACER TUBE REAR SPRING TO SPRING SHACKLE
100
WASHER REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET
105
NUT TORSION BAR TO BEARING BRACKET,5 904661
110
SCREW REAR SPRING TO SPRING SHACKLE
115
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
120
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
125
PLATE FRONT SPRINGS TO FRONT AXLE
130
U-BOLT REAR SPRING TO REAR AXLE M 16X1,5X210MM
135
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
140
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
