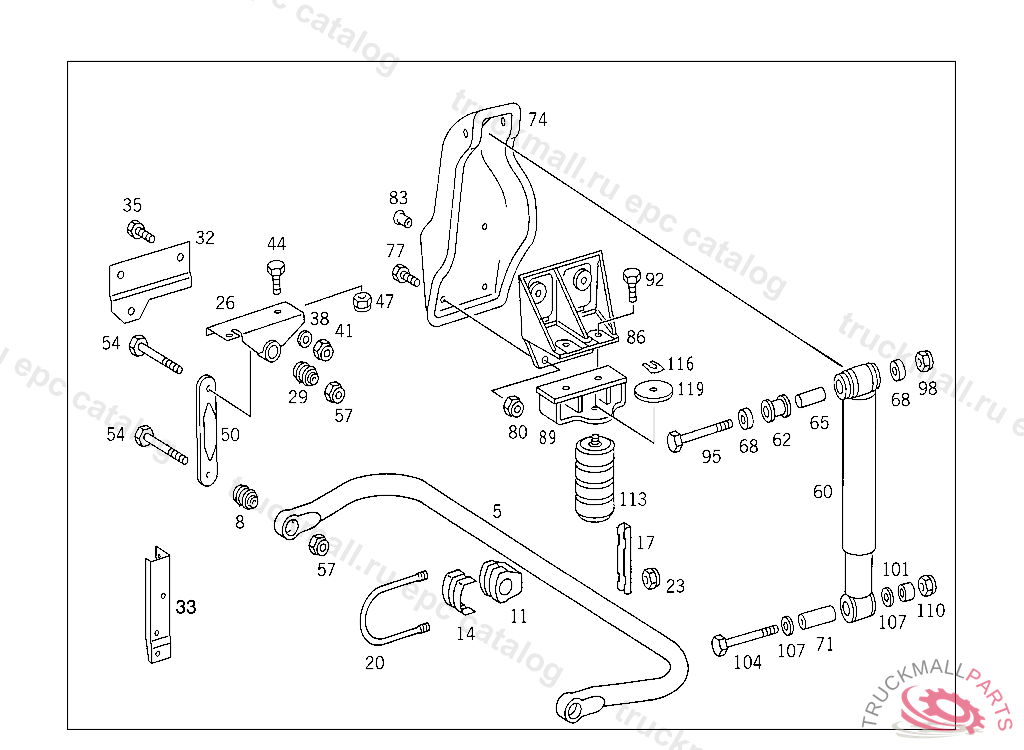

Поз.
Артикул
Описание
5
TORSION BAR
5
TORSION BAR , Replaced By: A6883200711
8
BEARING SHACKLE TO STABILIZER, Replaced By: A9793200173
8
BEARING
8
BEARING BRACKET TO SHACKLE
8
BEARING BRACKET TO SHACKLE
11
RUBBER MOUNTING TORSION BAR TO FRONT AXLE
14
BRACKET TORSION BAR TO FRONT AXLE
17
BRACKET TORSION BAR TO FRONT AXLE
20
CLAMP TORSION BAR TO FRONT AXLE
23
NUT BRACKET TO SIDE MEMBER M12X1.5
26
BRACKET RIGHT
26
BRACKET LEFT
26
BRACKET , Replaced By: A6883200343
26
BRACKET , Replaced By: A6883200443
29
BEARING SHACKLE TO STABILIZER, Replaced By: A9793200173
29
BEARING BRACKET TO SHACKLE
29
BEARING BRACKET TO SHACKLE
33
33
BRACKET TORSION BAR
35
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
35
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
41
NUT BRACKET TO SIDE MEMBER M12X1.5
44
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
44
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
44
SCREW BRACKET TO SIDE MEMBER M10X35
47
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
SHACKLE
54
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
57
NUT BRACKET TO SIDE MEMBER M12X1.5
60
SHOCK ABSORBER FRONT AXLE
62
RUBBER MOUNTING TOP AND BOTTOM
62
GUMMIHULSE. RUBBER MOUNTING TOP AND BOTTOM, Replaced By: A0003238685
65
BUSHING TOP
68
SPACER TUBE RUBBER PAD
71
BUSHING BOTTOM
74
CONSOLE LEFT SHOCK ABSORBER
74
CONSOLE RIGHT SHOCK ABSORBER
83
RIVET12X36 MM
83
RIVET12X30 MM
95
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
98
NUT SUPPORT TO FRAME
101
SPACER TUBE SHOCK ABSORBER TO FRONT AXLE
104
HEXAGON HEAD BOLT AT FRAME, REAR M14X1.5X150
107
WASHER SHOCK ABSORBER TO FRONT AXLE
110
NUT SUPPORT TO FRAME
113
RUBBER SPRING FRONT SPRING STOP
113
RUBBER SPRING FRONT SPRING STOP
116
BRACKET RUBBER SPRING TO BRACKET
119
WASHER RUBBER SPRING TO BRACKET
