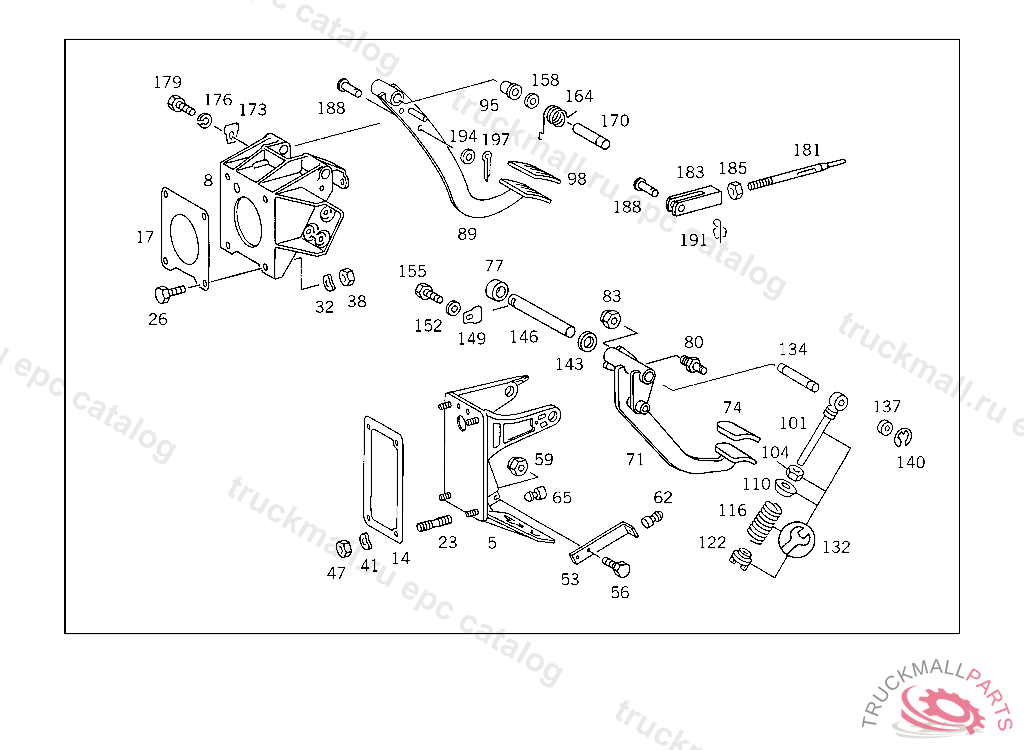

Поз.
Артикул
Описание
5
BEARING BRACKET BRAKE PEDAL
5
BEARING BRACKET , Replaced By: A6882947001
8
BEARING BRACKET , Replaced By: A3842947201
8
BEARING BRACKET BRAKE PEDAL
14
GASKET , Replaced By: A6452940280
14
GASKET BEARING BRACKET TO CAB
17
GASKET BEARING BRACKET TO CAB
23
STUD
32
SPRING WASHER BRAKE SHOE WITH LINING
38
NUT BATTERY CASE
41
SPRING WASHER BRAKE SHOE WITH LINING
47
NUT BATTERY CASE
53
STOP CLUTCH PEDAL
53
STOP STOP TO BEARING BRACKET
56
SCREW CLAMP TO BRACKET
59
NUT , Replaced By: N913004006001
62
STOP BRAKE PEDAL
62
STOP CLUTCH PEDAL AND BRAKE PEDAL
65
STOP
65
STOP CLUTCH PEDAL,1B 849449
71
PEDAL CLUTCH
74
PAD , Replaced By: A1072910182
74
PAD CLUTCH PEDAL
77
NEEDLE BEARING CLUTCH PEDAL
80
PIN CLUTCH PEDAL39 MM(M10) TO A6952907216
83
NUT AIR CLEANER ELEMENT
89
PEDAL BRAKE, NO.8650I.......I I I II .......INO.9985I I I II I
95
BUSHING , Replaced By: A1242920050
98
PAD , Replaced By: A1072910182
101
ROD , Replaced By: A3822908419
104
NUT GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
110
SPRING RETAINER SPRING TO PUSH ROD
116
SPRING CLUTCH PEDAL RESET,B 974885
122
SPRING RETAINER SPRING TO PUSH ROD
132
REPAIR KIT , Replaced By: A3862900039
134
PIN , Replaced By: A3842917074
134
PIN PUSH ROD TO CLUTCH PEDAL52 MM,B 910380
137
WASHER BRACKET TO FENDER BRACKET
140
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
143
WASHER CLUTCH PEDAL TO BEARING BRACKET
146
PIN CLUTCH PEDAL TO BEARING BRACKET
149
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
149
LOCK , Replaced By: A6732920073
152
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
155
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
158
SPACER WASHER BRAKE PEDAL TO BEARING BRACKET
164
SPRING BRAKE PEDAL TO BEARING BRACKET
170
PIN CLUTCH PEDAL TO BEARING BRACKET
170
PIN , Replaced By: A6452940074
173
LOCK , Replaced By: A6732920073
173
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
176
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
179
SCREWM 6X12
188
PIN BRAKE PEDAL TO BRAKE BOOSTER
191
LOCK BRAKE PEDAL TO BRAKE BOOSTER
999
STOP CLUTCH PEDAL STOP
999
LOCK RING PUSH ROD TO PEDAL
