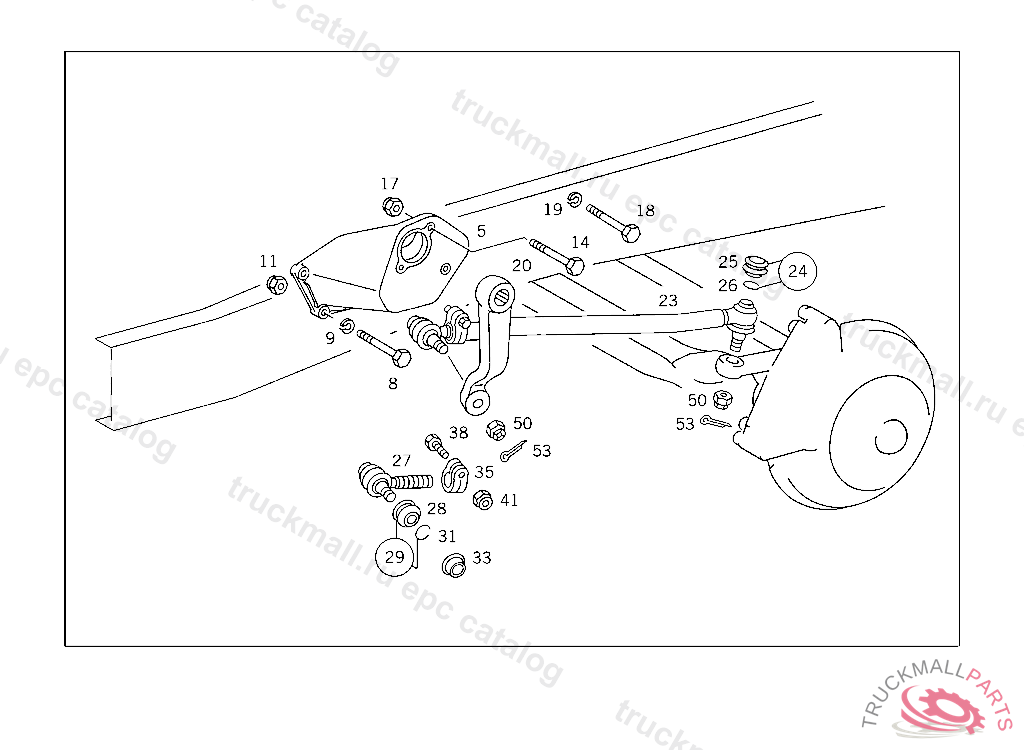

Поз.
Артикул
Описание
5
STEERING SUPPORT , MECHANIC STEERING-762.0
8
SCREW STEERING SUPPORT TO FRAME M 12X1.5X35
8
SCREW STEERING SUPPORT TO FRAME M 12X1,5X50
11
NUT , Replaced By: N910113012003
14
SCREW STEERING GEAR TO STEERING BRACKET M 12X130, MECHANIC STEERING-762.0
14
SCREW STEERING GEAR TO STEERING BRACKET, MECHANIC STEERING-762.0
17
NUT , Replaced By: N910113012003
17
NUT SUPPORT TO SIDE MEMBER
20
PITMAN ARM , MECHANIC STEERING-762.0
23
DRAG LINKNAKATA, MECHANIC STEERING-762.0
23
DRAG LINKTRW, MECHANIC STEERING-762.0
24
BOOT FIXED PART OF JOINT TO 688 460 05 05,75 05,74 05,76 05
25
BOOT FIXED PART OF JOINT TO 688 460 03 05,77 05,79 05,78 05
26
RINGTO 000 463 20 96
27
DRAG LINK ENDTO 688 460 03 05,77 05,79 05
27
DRAG LINK ENDTO 688 460 05 05,75 05,74 05,76 05
28
BOOTTO 000 460 63 48
29
BOOTTO 000 460 62 48
31
RINGTO 000 463 20 96
33
CLAMPING RING JOINT 18MM,TO 345 460 84 05,680436, 344.012-344.015
35
CLAMPING PIECE JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
35
CLAMP JOINT TO DRAG LINK TO 688 460 03 05,77 05, 78 05
35
CLAMP JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
38
SCREW TIE ROD, FROM AXLE 1 2480131 511630
38
SCREW CLAMP TO DRAG LINK TO 000 463 05 17
41
NUT LEAF SPRING TO BEARING BRACKET
50
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
53
COTTER PIN
