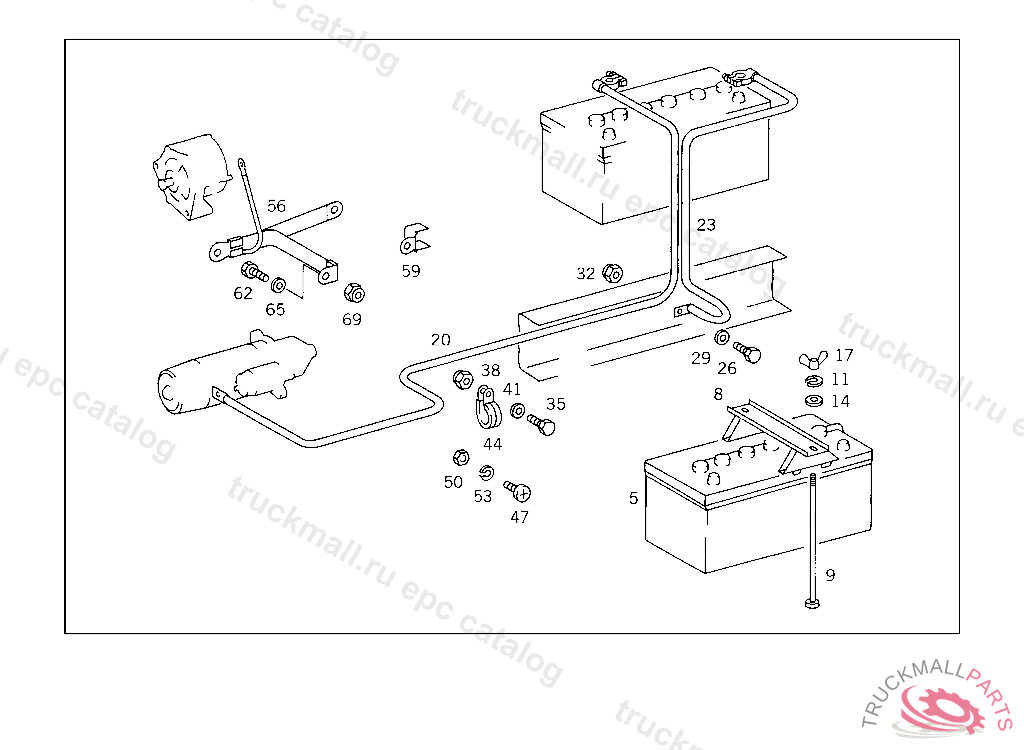

Поз.
Артикул
Описание
5
BATTERY12V 95 AH
5
BATTERY12V 95 AH
5
BATTERY12 V 95 AH
8
RAIL BATTERY MOUNTING
9
CLAMPING SCREW ANGLE TO BATTERY SUPPORT
11
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
14
WASHER TRAILER PLUG SOCKET TO BRACKET
17
NUT , Replaced By: A3259900562
20
POSITIVE CABLE BATTERY II
23
NEG. CABLE FROM BATTERY NEG.POLE TO FRAME
23
NEG. CABLE FROM BATTERY TO SWITCH
26
SCREW , Replaced By: N304017010002
29
WASHER GROUND CABLE
32
NUT , Replaced By: N910113010000
35
SCREW CLAMP TO BRACKET
38
NUT , Replaced By: N913004006001
41
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
44
CLAMP BRAKE HOSE BRACKET
47
SCREWWABCO
50
NUT CLAMP TO BRACKET
53
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
56
GROUND STRAP FROM ENGINE TO FRAME
59
CABLE SHOE FROM BATTERY NEG.POLE TO FRAME
59
CABLE SHOE FROM BATTERY NEG.POLE TO FRAME
62
SCREW BRACKET TO BUMPER,LEFT M 10X25
62
SCREW , Replaced By: N304017010002
65
WASHER GROUND CABLE
69
NUT , Replaced By: N910113010000
