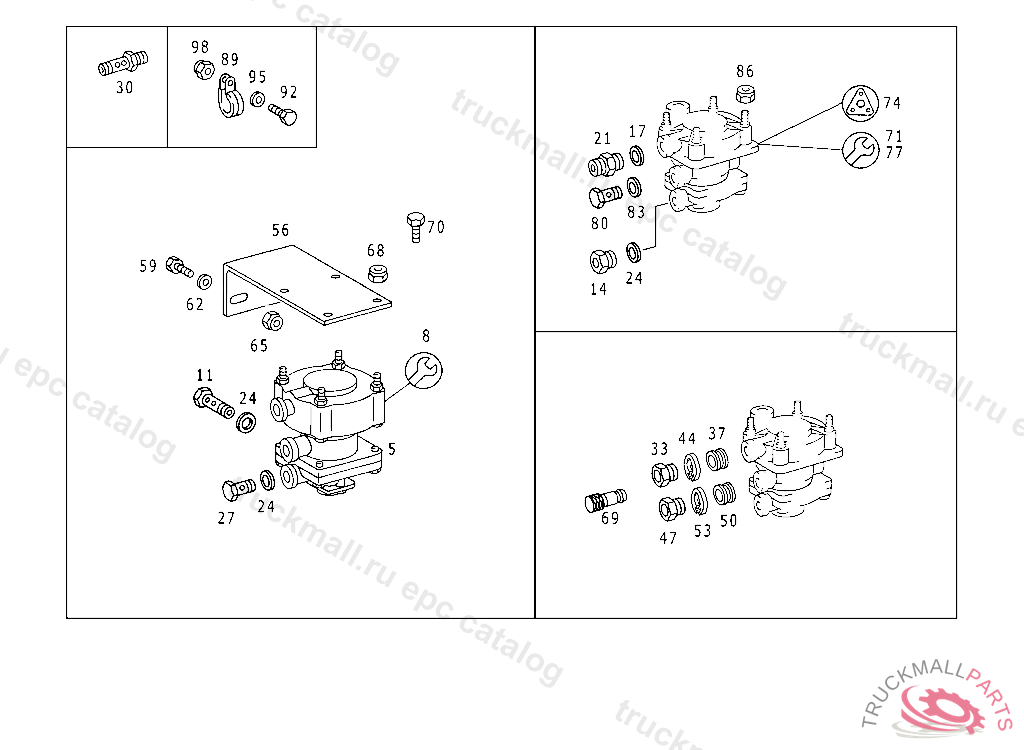

Поз.
Артикул
Описание
5
VALVE (TRAILER CONTROL VALVE) KNORR
5
TRAILER CONTROL VALVE (TRAILER CONTROL VALVE) "KNORR"
5
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
5
BRAKE VALVE (TRAILER CONTROL VALVE) "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE VALVE (TRAILER CONTROL VALVE) "KNORR",TB108827
8
REPAIR KITTO 001 431 37 05,4 375193
8
REPAIR KITTO 003 431 35 05,TB108828
8
REPAIR KITTO A 000 431 82 13
8
REPAIR KIT TRAILER CONTROL VALVE "WABCO"
8
REPAIR KIT CONTROL VALVE TO 002 431 28 05
8
REPAIR KIT VALVE KIT TO 001 431 37 05,4 375193
11
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
14
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
17
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
21
FITTING TRAILER CONTROL VALVE,CONNECTION: "11",TB108828
24
SEAL RINGTO 006 997 00 72
27
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
30
HOLLOW SCREW FITTING FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
33
SCREW. UNION SCREW LINE CONNECTION
37
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
44
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
47
SCREW. UNION SCREW , Replaced By: A0009973734
50
SEAL RING , Replaced By: A0009940747
50
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
53
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
53
LOCK , Replaced By: A0009945448
56
BRACKET TRAILER CONTROL VALVE
56
BRACKET TRAILER CONTROL VALVE
56
BRACKET TRAILER CONTROL VALVE
56
BRACKET TRAILER CONTROL VALVE
59
SCREW BRACKET TO BUMPER,LEFT M 10X25
59
SCREW BRACKET TO SIDE MEMBER M10X30
59
SCREW BRACKET TO SIDE MEMBER
59
SCREW , Replaced By: N308676014012
59
SCREW , Replaced By: N304017010040
59
SCREW BRACKET TO LEFT SIDE MEMBER
62
WASHER
62
WASHER GROUND CABLE
65
NUT BRACKET TO SIDE MEMBER,XB209706
65
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
65
NUT BRACKET TO SIDE MEMBER
65
NUT , Replaced By: N910113014000
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
69
PLUG DISTRIBUTOR,CONNECTION: "11",5 411349
70
SCREW PLUG SOCKET TO FRAME
71
REPAIR KITTO 001 431 87 05,WABCO,5 159292
71
REPAIR KITTO 003 431 02 05,KNORR,I/87610
71
REPAIR KITTO 003 431 00 05,GRAU 355 064 001
71
REPAIR KIT VALVE DISC TO 001 431 67 05,BOSCH 061 214
74
GASKET KIT SEAL RING TO 002 431 01 05,BOSCH 061 215
77
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
80
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
83
SEAL RINGTO 006 997 00 72
86
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
CLAMP STAY TO BRACKET
89
CLAMP
92
SCREW LINES TO BRACKET
92
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
95
WASHER TRAILER PLUG SOCKET TO BRACKET
98
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
VALVE
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
VALVE (PARKING BRAKE VALVE) WABCO
999
ELECTRIC CABLE PARTS KIT TO A 693 431 72 05
999
FITTING LINE CONNECTION
999
VALVE (PARKING BRAKE VALVE)
999
VALVE (PARKING BRAKE VALVE)
999
REPAIR KIT REPAIR KIT TO 695 430 71 81
999
VALVE (PARKING BRAKE VALVE)
999
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
CONNECTOR9MM / M22X1,5 / VOSS 230, Replaced By: A0019909571, +001A0009940147, +001A0009941448, +001A0009970934
999
PLUG TO PLUG THE FREE CONNECTIONS,K 063043
999
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
999
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
999
PLUG SOCKET SEE GROUP 54,FIG.NO.:
999
GLAND LINE CONNECTION
999
SCREW-IN FITTING ,D 091465
999
SEAL RING LINE CONNECTION
999
SEAL RING FUEL LINE TO FEED PUMP
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
UNION NUT LINE CONNECTION
999
HOLLOW SCREW , Replaced By: N915036010108
999
BANJO UNION HEATING CONNECTION,K 169122
999
SLEEVE LINE CONNECTION
