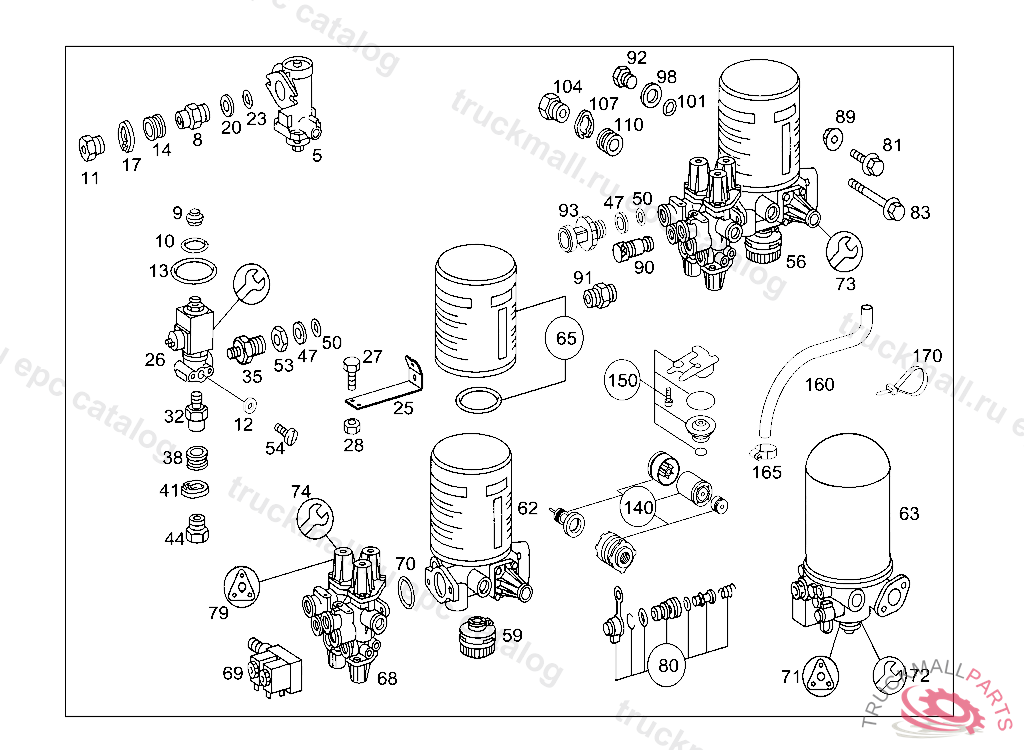

Поз.
Артикул
Описание
56
56
56
56
59
MUFFLER
59
MUFFLER VALVE CENTRE TO 693 420 75 71
62
62
62
ANTI-FREEZE DEVICETO 693 420 73 71
63
AIR DEHYDRATORTO 693 420 75 71
65
ANTI-FREEZE DEVICE REPAIR KIT
65
REPAIR KIT. AIR CLEANERTO 693 420 75 71
68
VALVE FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 73 71
68
VALVE FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 75 71
70
SEAL RINGTO 693 420 73 71
71
GASKET KIT REPAIR KIT TO A 664 431 01 15 KNORR
72
PARTS KIT PRESSURE REGULATOR TO 693 420 73 71,75 71
72
GASKET KIT AIR DEHYDRATOR TO 000 430 19 15
73
ANTI-FREEZE DEVICE. REPAIR KIT AIR DEHYDRATOR TO 693 420 73 71
73
ANTI-FREEZE DEVICE. REPAIR KIT VALVE TO 693 420 73 71
73
REPAIR KITTO A 664 431 01 15 KNORR
73
REPAIR KIT AIR DEHYDRATOR TO 382 420 75 71
74
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 75 71
74
REPAIR KIT VALVE TO 695 420 75 71
74
REPAIR KIT PRESSURE REGULATOR TO 693 420 73 71
79
RS PROTECTION VALVE FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 75 71,D 333550
79
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE TO 693 420 75 71,D 333549
80
TEST CONNECTION TIRE INFLATING VALVE, TO 382 420 74 71/ 72 71
81
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
81
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
81
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
83
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
89
NUT BRACKET TO SIDE MEMBER M12X1.5
90
PLUG DISTRIBUTOR,CONNECTION: "11",5 411349
92
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
98
THRUST RING CHECK VALVE TO AIR RESERVOIR
98
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
101
O-RING CHECK VALVE TO AIR RESERVOIR
104
SCREW. UNION SCREW LINE CONNECTION
104
SCREW. UNION SCREW , Replaced By: A0009973734
104
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
107
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
107
LOCK , Replaced By: A0009945448
110
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
110
SEAL RING , Replaced By: A0009940747
140
REPAIR KIT BETWEEN SPRING AND PLUNGER TO A 664 431 01 15 KNORR
150
ANTI-FREEZE DEVICETO A 664 431 01 15 KNORR
999
WASHER SUPPORT TO FRAME,D 127794
