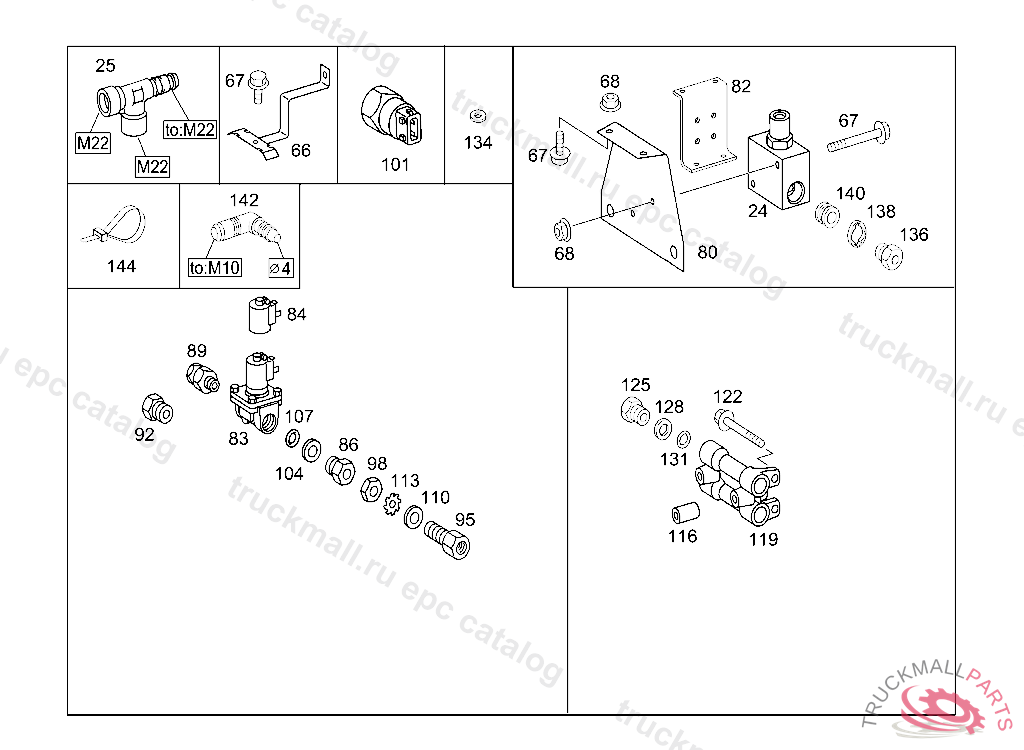

Поз.
Артикул
Описание
24
24
25
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
66
67
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
67
HEXAGON HEAD BOLT. SCREW SUSPENSION EYE AND BRACKET TO CYLINDER HEAD M 8X70,TO 366 223 06 41
67
SCREWM6X60
68
NUT HORN TO BRACKET M8
68
NUT BRACKET TO FIRE WALL
80
82
BRACKET BRACKET TO RIGHT SIDE MEMBER
83
84
MAGNET12 V, TO 345 997 74 36
86
FITTING 2/2-WAY VALVE TO BRACKET
89
CONNECTOR LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12"
92
92
95
ADAPTER FITTING AT BRAKE LINE COUPLING
98
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
101
101
104
THRUST RING LOCKING VALVE
104
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
104
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
WASHER , Replaced By: N000125017016
113
TOOTHED WASHER AT BRAKE LINE COUPLING
116
SPACER TUBE DISTRIBUTOR TO REAR AXLE I
119
DISTRIBUTOR TRAILING AXLE
122
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
125
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
128
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
128
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
131
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
134
WASHER BATTERY CASE
136
UNION SCREW SPRING LOAD ACCUMULATOR CYLINDER M10X1 / VOSS 230,D 259885
138
SEAL RING SPEEDOMETER DRIVE
140
SEAL RING SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
142
ELBOW FITTINGTO M10 / 4MM /VOSS 230
144
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
999
GASKET BRAKE SHOE WITH LINING
999
BRACKET LINE COMBINATION CYLINDER, NOT USED
999
BRACKET LINE COMBINATION CYLINDER, NOT USED
999
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
999
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
999
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
