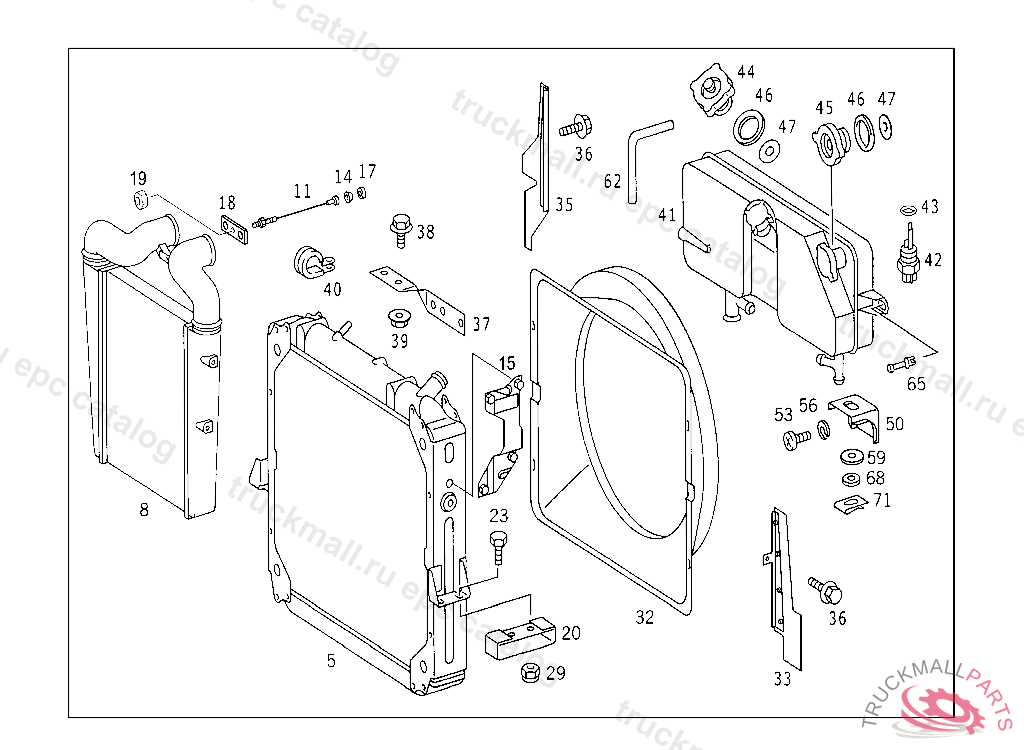

Поз.
Артикул
Описание
5
RADIATOR WATER
8
RADIATOR CHARGE AIR INTERCOOLING
11
PULL CHARGE AIR INTERCOOLING
11
PULL CHARGE AIR INTERCOOLING
14
SPHERICAL WASHER CHARGE AIR INTERCOOLING
15
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
17
SPHERICAL WASHER CHARGE AIR INTERCOOLING
18
RUBBER BUFFER
19
NUT , Replaced By: N913023006001
20
RUBBER MOUNTING RADIATOR
20
RUBBER MOUNTING RADIATOR
23
SCREW COLD START SYSTEM TO BRACKET
29
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
32
AIR BAFFLE RADIATOR
41
TANK COOLING WATER EXPANSION
44
RADIATOR CAP , Replaced By: A0005016415
45
RADIATOR CAP
46
GASKET O.D., 52 MM
47
GASKET O.D., 37 MM
50
BRACKET RESERVOIR TO CAB FRONT PANEL
50
BRACKET , Replaced By: A6736250214
53
SCREW BRACKET TO COVERING
56
LOCK WASHER CABLE TO FUSE BOX
59
RUBBER MOUNTING RESERVOIR TO CAB FRONT PANEL
62
HOSE PARKING BRAKE VALVE
65
RIVET COOLANT LINE ON FAN SHROUD
68
WASHER , Replaced By: N000125017016
71
CLIP RESERVOIR TO CAB FRONT PANEL
71
LOCK AT WATER EXPANSION TANK
999
BRACKET
999
WASHER GROUND CABLE
