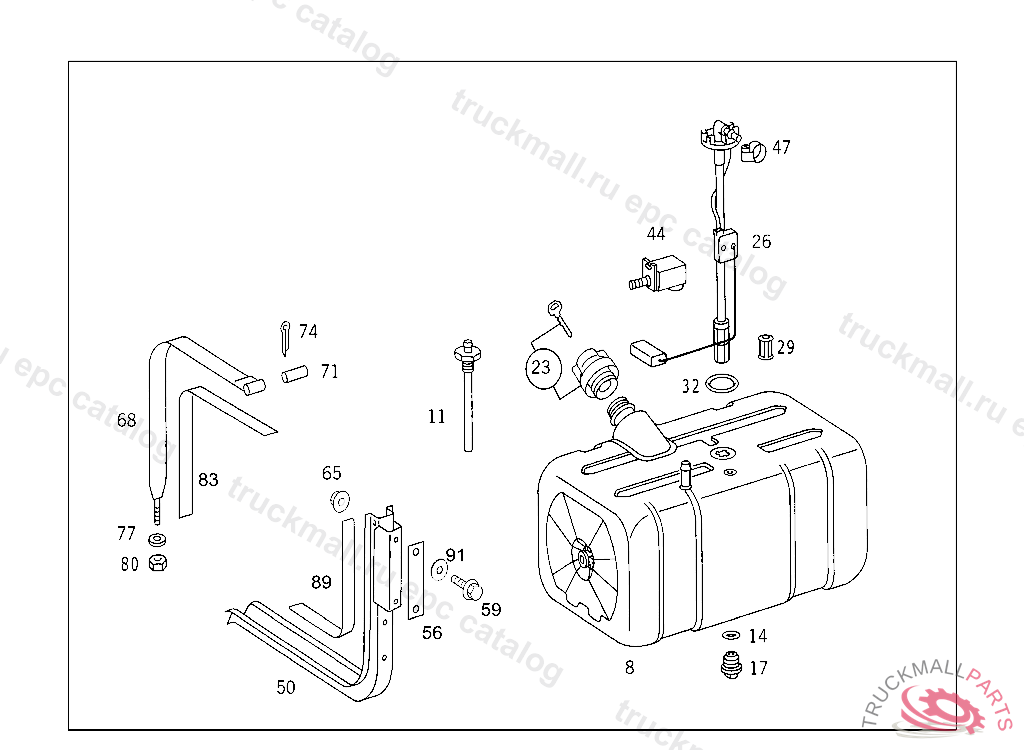

Поз.
Артикул
Описание
8
FUEL TANK210 L
8
FUEL TANK210 L
8
FUEL TANK210L
11
LINETO A 695 470 01 03
11
LINETO A 695 470 00 01
14
SEAL RING FUEL STRAINER SCREEN
17
FITTING
17
FITTINGTO A 695 470 00 01
23
FILLER CAP FILLER CAP TO A 388 470 69 01
23
FILLER CAP
26
SENDER UNIT FUEL TANK
29
STRAINER
32
SEAL RING
44
VALVE (VENT VALVE)
47
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
56
BASE CONSOLE TO FRAME
59
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
59
HEXAGON HEAD BOLT. SCREW CONSOLE TO FRAME END PLATE M14X1.5X40
59
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
59
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X50
65
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
68
STRAP FUEL TANK TO SUPPORT
71
PIN STRAP TO CONSOLE
74
COTTER PIN STRAP TO SUPPORT
77
WASHER SUPPORT TO FRAME,D 127794
80
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
80
NUT FUEL TANK TO SUPPORT
83
SHIM FUEL TANK TO CONSOLE
91
WASHER , Replaced By: A3859900440
91
WASHER BATTERY CASE
