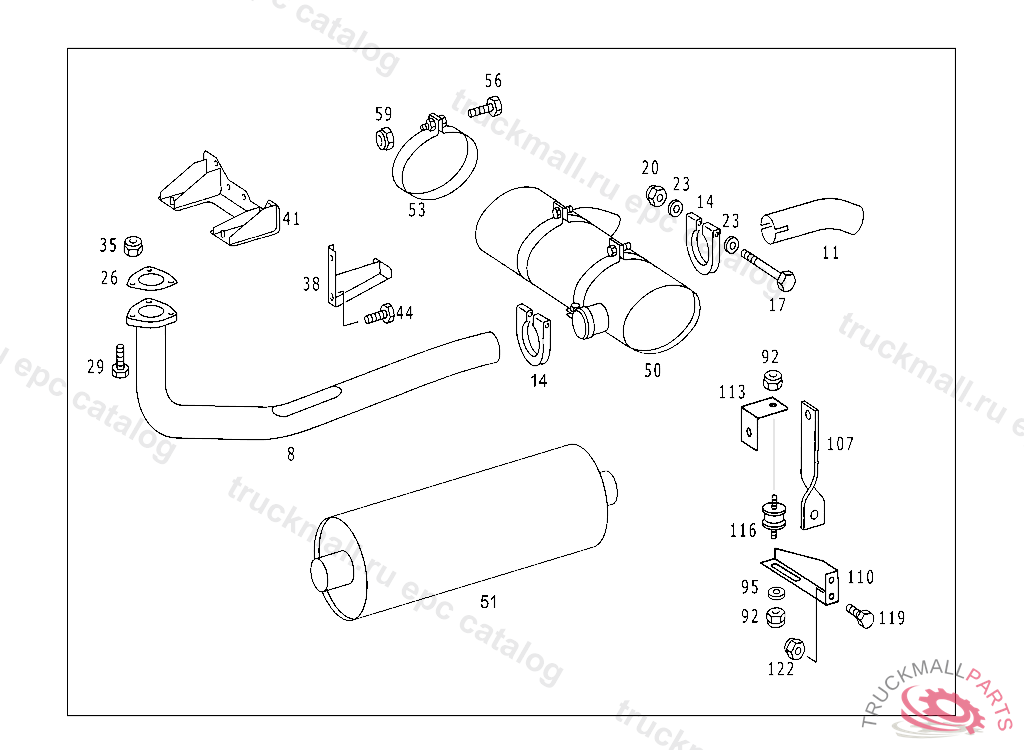

Поз.
Артикул
Описание
8
EXHAUST PIPE FRONT
11
REAR EXHAUST PIPE (TAIL PIPE)
14
CLAMP REAR EXHAUST PIPE TO MUFFLER,B 884220
17
SCREW REAR EXHAUST PIPE TO MUFFLER M 10X140,B 884220
20
NUT , Replaced By: N910113010004
23
WASHER GROUND CABLE
29
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
35
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
50
EXHAUST MUFFLER
51
EXHAUST MUFFLER
56
SCREW CROSS MEMBER TO SIDE MEMBERS
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
92
NUT BRACKET TO RETARDER
95
WASHER GROUND CABLE
107
SUPPORT REAR EXHAUST PIPE SUSPENSION
110
SUPPORT EXHAUST MUFFLER
113
BRACKET EXHAUST MUFFLER
116
RUBBER BUFFER EXHAUST MUFFLER
119
SCREW BATTERY CASE
122
NUT , Replaced By: N910113014000
