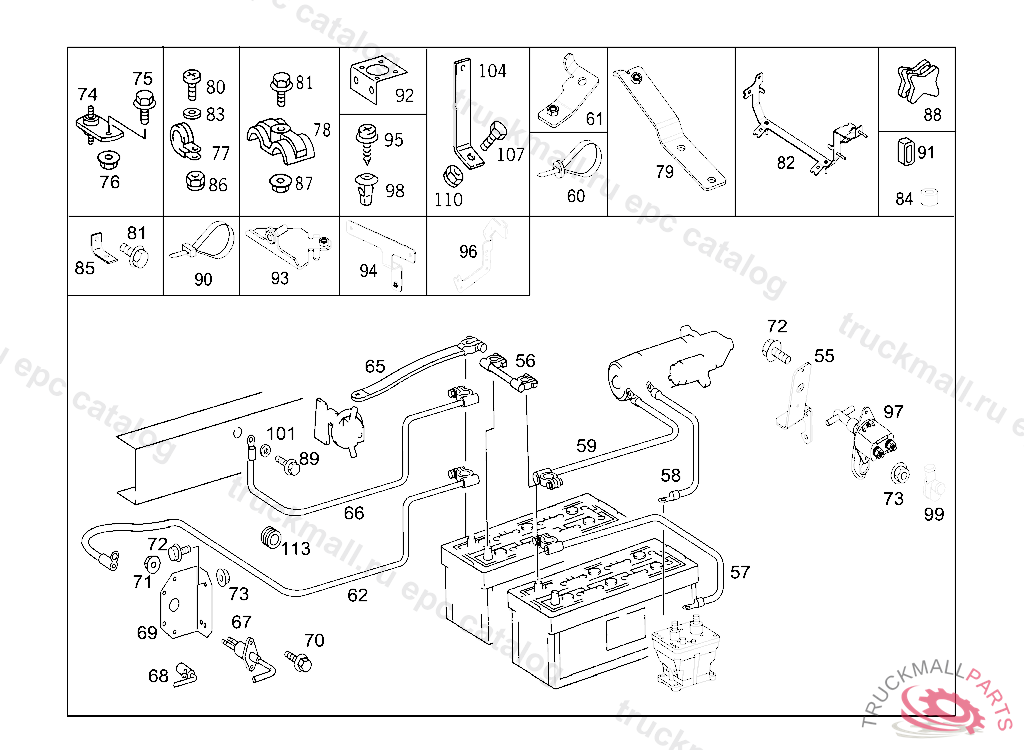

Поз.
Артикул
Описание
55
56
POSITIVE CABLE FROM BATTERY I TO BATTERY II
56
57
57
58
58
59
59
59
POSITIVE CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 2500MM,D 262513
59
59
POSITIVE CABLE , Replaced By: A6935407230
60
LOOM TIE LINE MOUNTING
61
62
NEG. CABLE FROM BATTERY TO FRAME
65
65
66
66
72
SCREW BRACKET AND CLAMP M6X20
73
NUT BRACKET TO FIRE WALL
74
CONNECTOR GROUND CABLE TO BATTERY FRAME
75
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
76
NUT BRACKET TO FIRE WALL
76
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
78
CLAMP ELECTRIC CABLE MOUNTING
79
81
SCREW BATTERY CABLE TO BRACKET M6X45
81
SCREW , Replaced By: N910143008000
81
SCREW BATTERY CABLE TO BRACKET M6X65
82
83
WASHER , Replaced By: A3609902340
84
WASHER BRACKET TO LEFT SIDE MEMBER
85
BRACKET FUEL LINE TO SIDE MEMBER
87
NUT BRACKET TO FIRE WALL
88
SPACER WASHER LINE MOUNTING
89
SCREW GROUND CONNECTION TO WINDOW SILL,B 959934
89
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
89
SCREW , Replaced By: N304017010040
90
LOOM TIE ELECTRIC CABLE MOUNTING
90
CABLE TIE LINE MOUNTING 375X8.4MM
91
SPACER RING BATTERY CABLE
92
BRACKET DIAGNOSIS PLUG SOCKET
93
94
95
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
95
SHEET METAL SCREW MUFFLER TO AIR INTAKE PIPE,INSIDE
96
BRACKET BATTERY CABLE TO TRANSMISSION
97
98
TREENAIL FUSE BOX
99
COVERING BATTERY CUT-OFF,D 262514
101
WASHER PLUG SOCKET TO BRACKET
104
BRACKET POS. CABLE,XB209706
104
BRACKET , Replaced By: A3464296040
107
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
107
SCREW SHIFT LEVER TO BRACKET M8X30
107
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
107
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
110
NUT HORN TO BRACKET M8
110
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
110
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
110
NUT BRACKET TO FIRE WALL
113
GROMMET HIGH PRESSURE HOSE THRU FRAME
