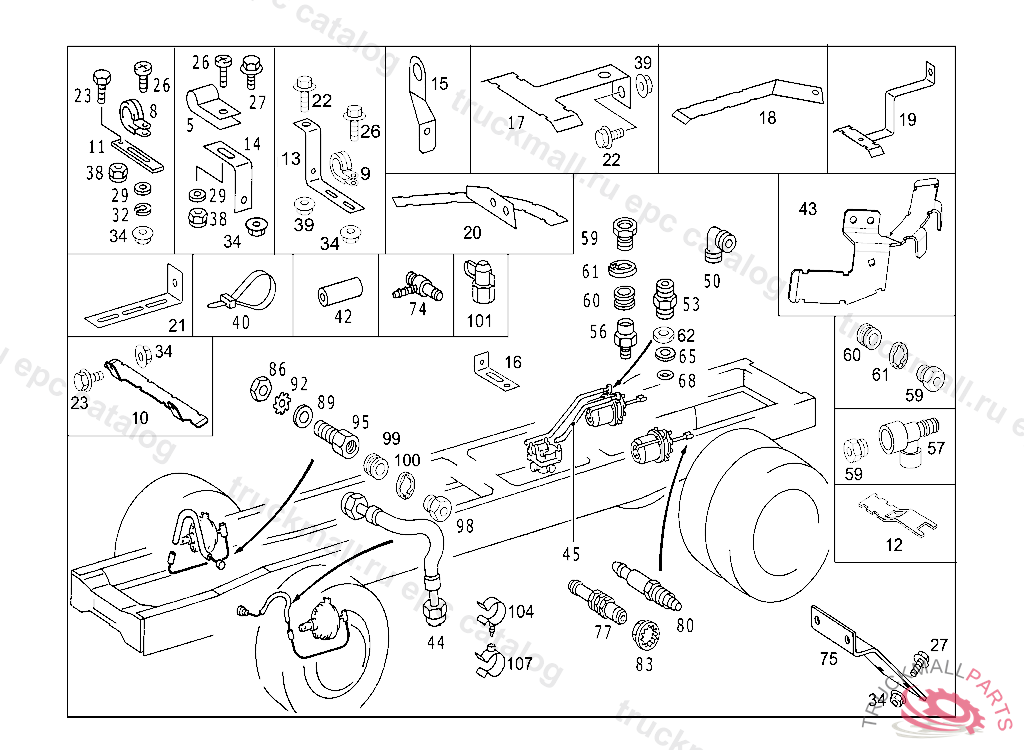

Поз.
Артикул
Описание
5
CLAMP LINE MOUNTING
8
CLAMP HYDRAULIC LINE TO SIDE MEMBER,RB012797
9
CLAMP SUCTION LINE TO CROSS MEMBER
9
CLAMP
10
10
11
BRACKET AT CROSS MEMBER
12
13
BRACKET OIL LINE
14
BRACKET COMPRESSED AIR LINE TO CROSS MEMBER
14
14
BRACKET BATTERY CABLE MOUNTING
17
17
BRACKET AT RIGHT SIDE MEMBER
17
BRACKET TO MOUNT FUEL LINES
17
BRACKET AT RIGHT SIDE MEMBER
18
19
BRACKET BRACKET TO RIGHT SIDE MEMBER
20
BRACKET AT OIL TANK BRACKET
21
BRACKET TO ENGINE
21
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
22
SCREW SHIFT LEVER TO BRACKET M8X30
22
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
22
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
23
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
23
SCREW LINES TO BRACKET
23
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
23
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
23
SCREW SHIFT LEVER TO BRACKET M8X30
23
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
23
SCREW , Replaced By: N910143008002
23
SCREW BRACKET TO CAB REAR PANEL M 8X20
26
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
26
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
27
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
27
HEXAGON HEAD BOLT RELAY TO BRACKET
29
WASHER , Replaced By: A3609902340
32
LOCK WASHER RAIL TO BATTERY SUPPORT
34
NUT BRACKET TO FIRE WALL
34
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
34
NUT HORN TO BRACKET M8
34
NUT ENGINE MOUNTING M8
38
NUT BRACKET TO SIDE MEMBER
39
NUT HORN TO BRACKET M8
39
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
39
NUT ENGINE MOUNTING M8
39
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
40
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
40
LOOM TIE AIR INTAKE HOSE TO CLAMP
40
LOOM TIE LINE MOUNTING
40
LOOM TIE ELECTRIC CABLE MOUNTING
40
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
42
INSULATING HOSE BRACKET TO FIRE WALL,D 013019
43
44
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
44
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
44
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
44
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
45
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11" - 800 MM
45
BRAKE HOSE FROM FITTING TO LEFT COMBINATION CYLINDER,CONNECTION: "11" - 800 MM
45
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER "12" - 800 MM
45
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER "12" - 800 MM
50
FITTING , Replaced By: A0019909871
50
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
50
ELBOW FITTING , Replaced By: A3849907071
53
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
56
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
59
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
59
SCREW. UNION SCREW LINE CONNECTION
60
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
61
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
62
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
65
THRUST RING LOCKING VALVE
65
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
68
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
74
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
83
LOCK REAR AXLE BRAKE HOSE,K 181360
86
NUT BRACKET TO SIDE MEMBER
89
WASHER PULLEY TO AIR COMPRESSOR, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992
89
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
92
TOOTHED WASHER SENDER UNIT TO BRACKET
95
ADAPTER FITTING LINE CONNECTION TO ENGINE
98
SCREW. UNION SCREW LINE CONNECTION
99
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
100
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
101
TEST CONNECTION
101
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
101
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
101
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
T-FITTING DIAPHRAGM CYLINDER
999
COUPLING FRONT AXLE II BRAKE HOSE
999
WASHER TANK TO FRAME 48M/13.5MMM
999
NUT REAR SPRING TO REAR AXLE
