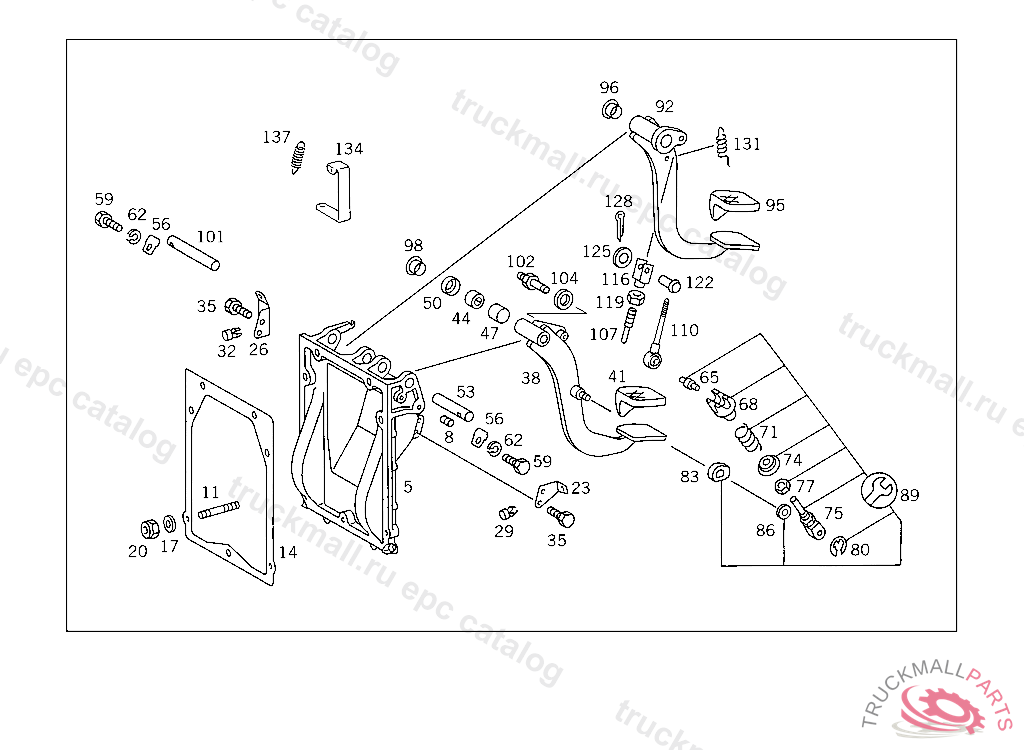

Поз.
Артикул
Описание
5
BEARING BRACKET (PEDAL BEARING BRACKET)
5
BEARING BRACKET (PEDAL BEARING BRACKET)
8
THREADED INSERT
11
STUD
14
GASKET BEARING BRACKET TO CAB
17
WASHER REAR FOGLAMP TO BRACKET
20
NUT HORN TO BRACKET M8
23
STOP CLUTCH PEDAL,5 219889
26
STOP BRAKE PEDAL
26
BRACKET BRAKE PEDAL,D 383712
29
STOP
32
STOP BRAKE PEDAL
35
HEXAGON HEAD BOLT
38
PEDAL CLUTCH,5 219889
41
PAD , Replaced By: A1072910182
44
NEEDLE BEARING CLUTCH PEDAL
44
NEEDLE BEARING CLUTCH PEDAL
44
NEEDLE BEARING
47
SPACER TUBE CLUTCH PEDAL
50
WASHER CLUTCH PEDAL TO BEARING BRACKET
53
PIN CLUTCH PEDAL TO BEARING BRACKET
56
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
59
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
59
SCREW CLAMP MOUNTING M 6X16
62
LOCK WASHER CABLE TO FUSE BOX
65
PIN CLUTCH PEDAL RESET
68
SPRING RETAINER CLUTCH PEDAL RESET
71
SPRING CLUTCH PEDAL RESET
74
SPRING RETAINER CLUTCH PEDAL RESET
75
ROD CLUTCH PEDAL RESET
77
NUT CLUTCH PEDAL RESET
80
LOCKING WASHER. LOCK PLATE CLUTCH PEDAL RESET
83
STOP CLUTCH PEDAL RESET,5 219889
86
WASHER GROUND CABLE
89
REPAIR KIT DEAD CENTER SPRING,5 219889
92
PEDAL BRAKE
95
PAD , Replaced By: A1072910182
96
BUSHING , Replaced By: A1242920050
98
BUSHING ROD TO CLUTCH PEDAL
101
PIN BRAKE PEDAL TO BEARING BRACKET
102
PIN ROD TO CLUTCH PEDAL
104
SPACER RING ROD TO CLUTCH PEDAL
107
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
110
ROD ZF TRANSMISSION 98 MM,D 495380
110
ROD ZF TRANSMISSION 98 MM,D 495380
110
ROD , Replaced By: A6932917833
116
YOKE OPERATING ROD
119
NUT CLUTCH PEDAL PISTON ROD
122
PIN ROD TO BRAKE PEDAL
125
WASHER PULL ROD TO SHIFT LEVER
128
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
131
SPRING BRAKE PEDAL RELEASE SPRING
134
BRACKET CLUTCH PEDAL
134
137
SPRING , Replaced By: A3829937110
137
SPRING PEDAL RETURN SPRING
