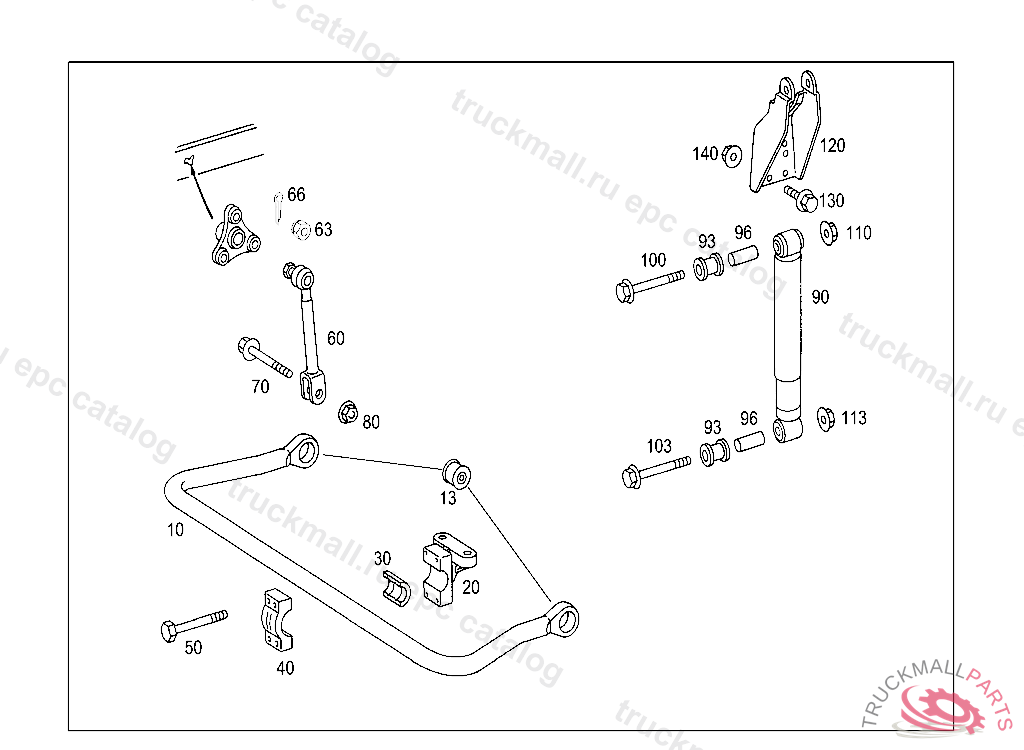

Поз.
Артикул
Описание
10
TORSION BAR STABILIZER,D 012296
13
BUSHING
20
BEARING BRACKET HOLE SPACING: 100 MM
30
GROMMET STABILIZER
30
GROMMET STABILIZER
40
BEARING SHELL TORSION BAR BEARING
50
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
60
ROD (ARTICULATED ROD)
63
NUT M14X1,5 MM
66
COTTER PIN (ARTICULATED ROD)
70
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
80
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
90
93
RUBBER MOUNTING
96
BUSHING
100
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
103
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
110
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
113
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
120
BRACKET RIGHT
120
BRACKET LEFT
130
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
140
NUT BRACKET TO SIDE MEMBER M12X1.5
