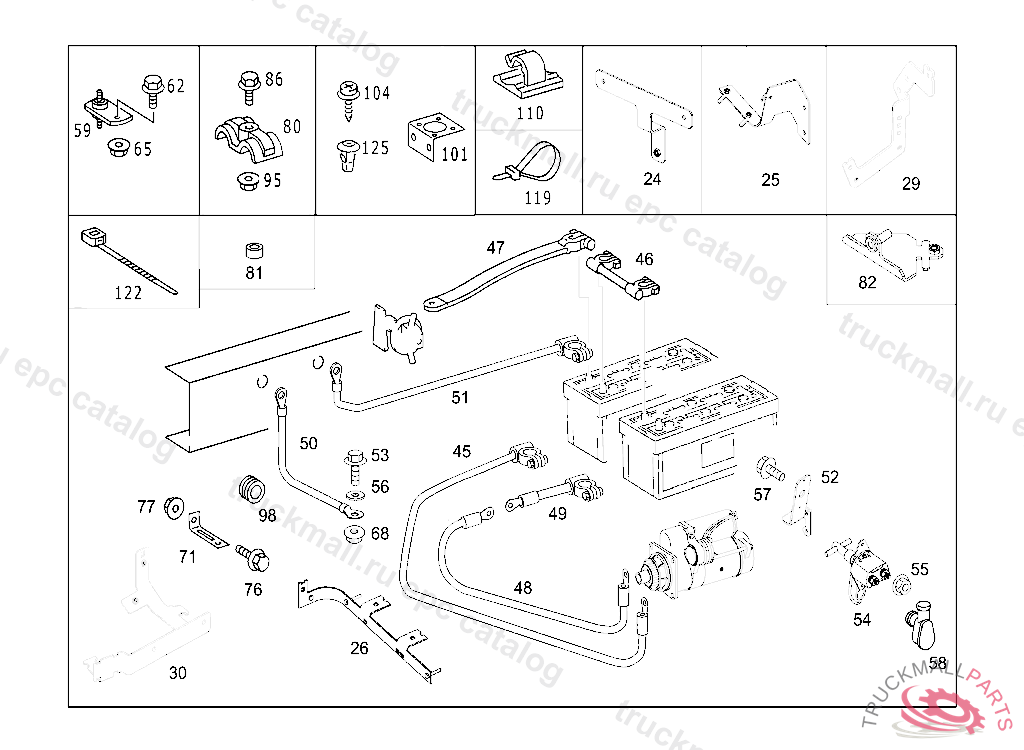

Поз.
Артикул
Описание
24
25
26
29
BRACKET BATTERY CABLE TO TRANSMISSION
30
45
POSITIVE CABLE , Replaced By: A6935407230
45
45
45
46
46
POSITIVE CABLE FROM BATTERY I TO BATTERY II
46
47
NEG. CABLE FROM BATTERY TO FRAME
48
48
49
49
50
NEG. CABLE ELECTRIC CABLE TO FUSE BOX,D 291813
51
51
52
53
STUD. SCREW GROUND CONNECTION
53
SCREW BRACKET TO COVERING
54
55
NUT BRACKET TO FIRE WALL
56
WASHER PLUG SOCKET TO BRACKET
57
SCREW BRACKET AND CLAMP M6X20
58
COVERING BATTERY CUT-OFF,D 262514
59
CONNECTOR GROUND CABLE TO BATTERY FRAME
62
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
65
NUT BRACKET TO FIRE WALL
68
NUT , Replaced By: N913023010002
68
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
71
BRACKET , Replaced By: A3184280240
76
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
77
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
80
CLAMP ELECTRIC CABLE MOUNTING
81
WASHER BRACKET TO LEFT SIDE MEMBER
82
86
SCREW BATTERY CABLE TO BRACKET M6X45
86
HEXALOBULAR BOLT BRACKET TO TRANSMISSION CASE M8X20
95
NUT BRACKET TO FIRE WALL
98
GROMMET HIGH PRESSURE HOSE THRU FRAME
101
BRACKET DIAGNOSIS PLUG SOCKET
104
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
110
CLAMP POS. CABLE TO PLATE
119
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
119
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
122
LOOM TIE ELECTRIC CABLE MOUNTING
122
LOOM TIE , Replaced By: A3459977390
122
LOOM TIE LINE MOUNTING
125
TREENAIL FUSE BOX
