Поз.
Артикул
Описание

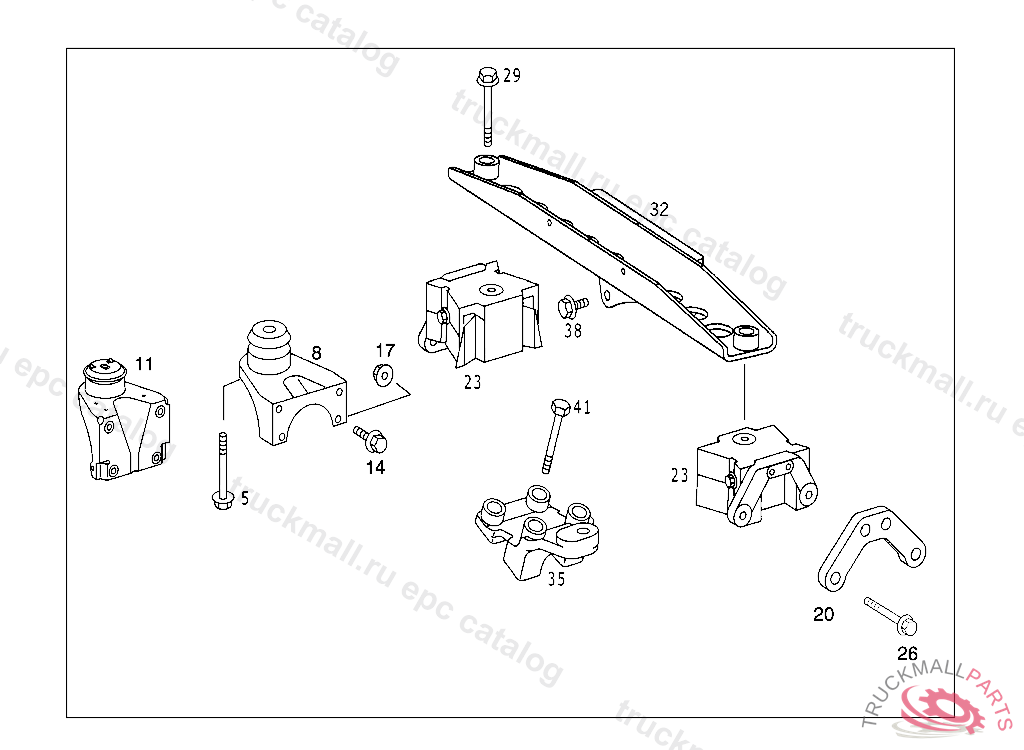

5
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X60, IN CONJUNCTION WITH CODE: 8224
11
11
RUBBER MOUNTING ENGINE FRONT SUSPENSION,D 665599, Replaced By: A3682400217
11
14
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
17
NUT BRACKET TO SIDE MEMBER M12X1.5
23
23
23
23
26
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
29
HEXAGON HEAD BOLT SUPPORTING ARM TO ENGINE REAR MOUNTING M18X1.5X50
35
SUPPORTING ARM ENGINE RIGHT REAR MOUNTING
35
SUPPORTING ARM ENGINE LEFT REAR MOUNTING
41
SCREW. HEXAGON HEAD BOLT SUPPORTING ARM TO TRANSMISSION CASE M22X80
41
SCREW. HEXAGON HEAD BOLT SUPPORTING ARM TO TRANSMISSION CASE M22X130
999
WASHER SUPPORTING ARM TO FRONT RUBBER MOUNTING
