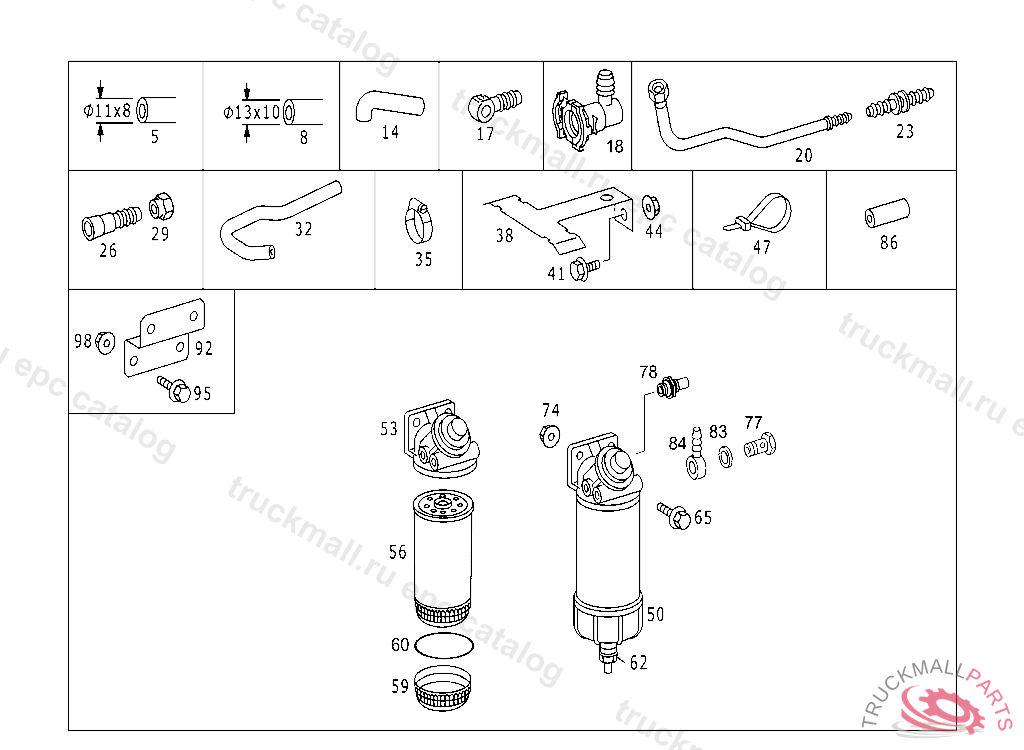

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
14
HOSE FUEL LINE TO RETURN CONNECTION
17
BANJO UNION HOSE WIDTH, / I.D., 10/16 MM
18
FITTING
20
LINE AT SENDER UNIT,D 372681
23
CONNECTOR AT AIR COMPRESSOR, NOT USED
26
CONNECTOR LINE CONNECTION
29
UNION NUT RETURN LINE
32
35
CLAMP HOSE TO FITTING AND TO OIL TANK
38
BRACKET AT RIGHT SIDE MEMBER
41
SCREW SHIFT LEVER TO BRACKET M8X30
41
SCREW POWER CYLINDER TO BEARING BRACKET
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT HORN TO BRACKET M8
47
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
47
LOOM TIE AIR INTAKE HOSE TO CLAMP
47
LOOM TIE ELECTRIC CABLE MOUNTING
50
FUEL FILTERMANN
50
FUEL FILTER
50
FUEL FILTER , Replaced By: A6954700090
53
FILTER HEAD
56
FILTER ELEMENTTORACOR
56
FILTER ELEMENTTOMANN
56
FILTER ELEMENT
59
FILTER BOWL. TRAY
59
PART NAME MISSINGTOA 958 470 04 90 (MANN)
60
SEALING RINGTO A 958 477 01 16
62
FITTING. FILTER
65
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
74
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
77
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
77
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
78
FITTING ON FUEL-WATER SEPARATOR TO A 688 470 00 90
83
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
84
FITTING COOLING WATER LINE TO TURBOCHARGER
86
HOSE WITHE
86
HOSE VIOLET
86
HOSE GREEN
92
BRACKET FUEL FILTER MOUNTING
95
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
98
NUT BRACKET TO SIDE MEMBER M12X1.5
999
HOSE
