Поз.
Артикул
Описание
5
8

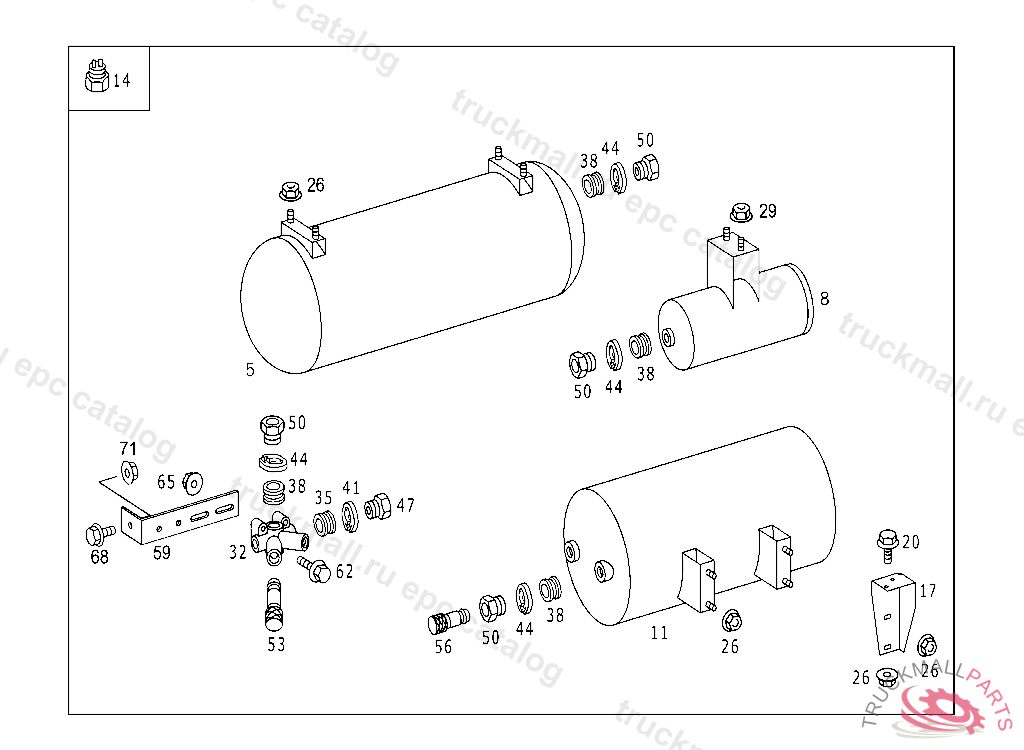

RESERVOIR AIR RESERVOIR
11
14
SWITCH PARKING BRAKE VALVE,CONNECTION: "11"
17
20
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
26
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
29
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
32
DISTRIBUTOR ENGINE SHUT-OFF,5 766894
35
SEAL RING , Replaced By: A0009940747
38
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
41
LOCK , Replaced By: A0009945448
44
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
47
SCREW. UNION SCREW , Replaced By: A0009973734
50
SCREW. UNION SCREW LINE CONNECTION
53
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
56
PLUG DISTRIBUTOR,CONNECTION: "11",5 411349
59
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
62
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
65
NUT BRACKET TO FIRE WALL
68
SCREW SHIFT LEVER TO BRACKET M8X30
71
NUT HORN TO BRACKET M8
