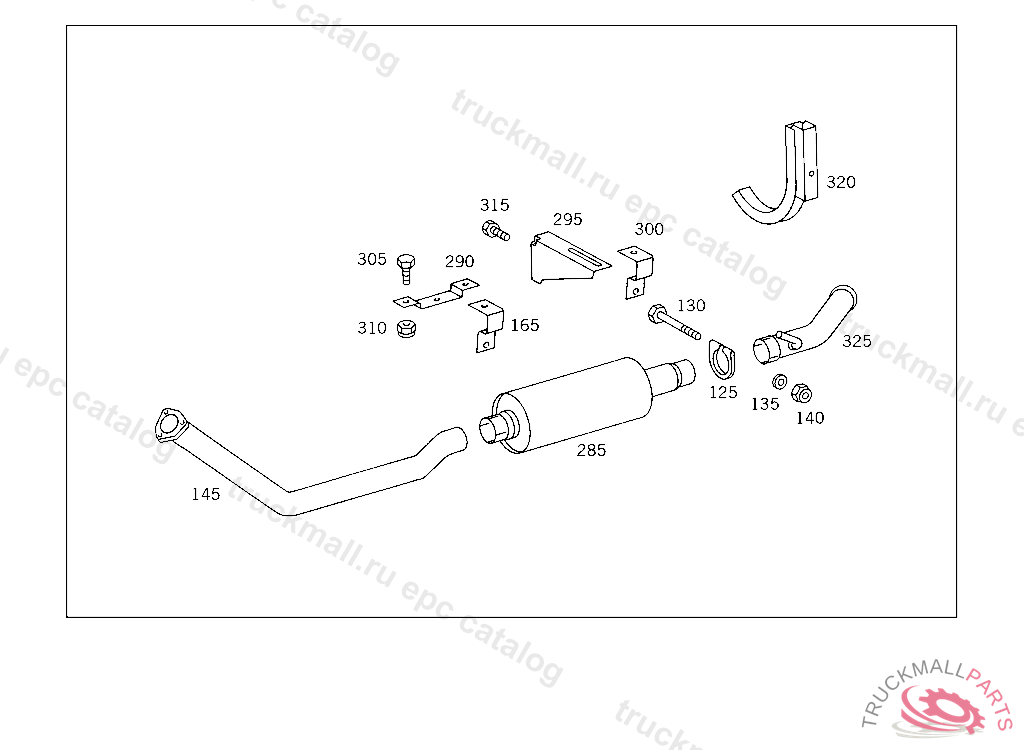

Поз.
Артикул
Описание
125
CLAMP REAR EXHAUST PIPE TO MUFFLER,B 884220
130
SCREW REAR EXHAUST PIPE TO MUFFLER
130
SCREW REAR EXHAUST PIPE TO MUFFLER
130
SCREW REAR EXHAUST PIPE TO MUFFLER M 10X140,B 884220
135
WASHER GROUND CABLE
140
NUT , Replaced By: N910113010004
140
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
145
EXHAUST PIPE FRONT
145
EXHAUST PIPE FRONT
145
EXHAUST PIPE FRONT
145
EXHAUST PIPE FRONT
285
EXHAUST MUFFLER WITH PIPE
290
SUPPORT FRONT EXHAUST MUFFLER
295
SUPPORT EXHAUST MUFFLER
300
BRACKET EXHAUST PIPE SUSPENSION
305
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
310
NUT ALTERNATOR TO SUPPORT
315
SCREW BATTERY CASE
320
SUPPORT FUEL TANK,FRONT AND REAR
325
END PIECE ,TB083306
325
END PIECE ,TB083305
999
REAR EXHAUST PIPE (TAIL PIPE),T 083305
999
EXHAUST PIPE FRONT, NOT USED
999
SUPPORT EXHAUST MUFFLER
999
END PIECE , Replaced By: A3884927014
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE (TAIL PIPE)
999
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
