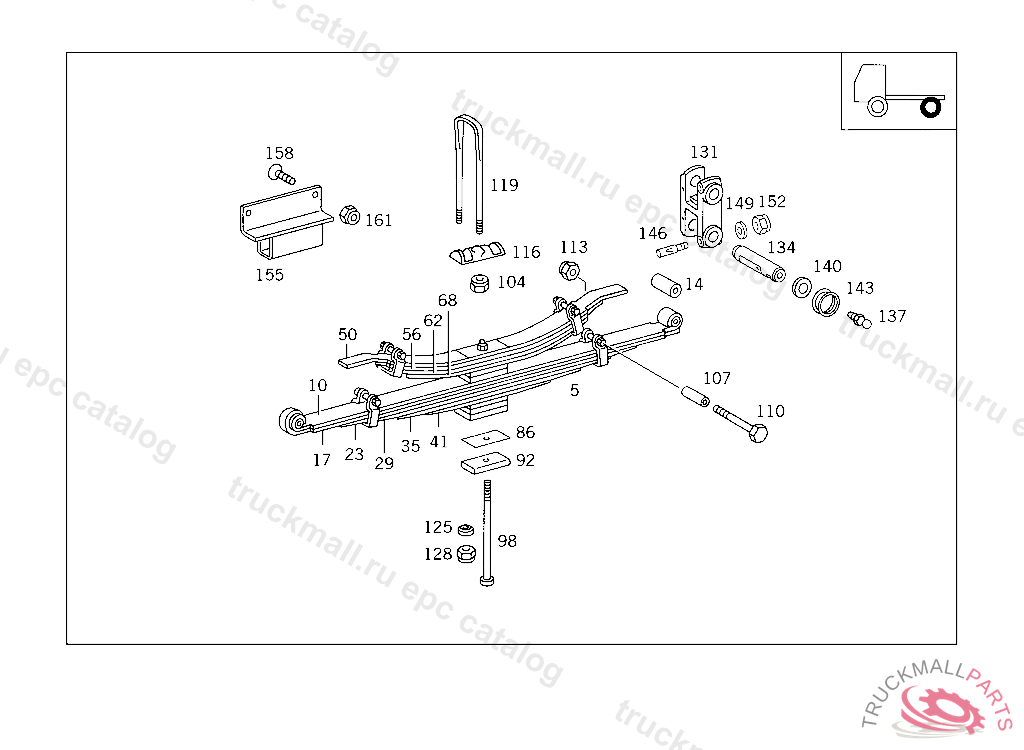

Поз.
Артикул
Описание
14
BUSHING
14
BUSHING
86
SPACER
104
NUT , Replaced By: N910113012005
107
SPACER TUBE SPRING CLAMP
110
SCREW SPRING CLAMP M 10X70
113
NUT SPRING CLAMP
116
PLATE REAR SPRING TO REAR AXLE
125
WASHER FRONT SPRINGS TO FRONT AXLE
128
NUT STEERING SUPPORT TO FRAME
131
SHACKLE REAR-SPRING REAR BRACKET
134
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
137
GREASE NIPPLE PROTECTIVE TUBE
140
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
140
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
140
WASHER AS REQUIRED 4.2 MM
140
WASHER AS REQUIRED 4.0 MM
143
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
146
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
149
WASHER GROUND CABLE
152
NUT BRACKET TO SIDE MEMBER,XB209706
155
STOP ,W186702
155
STOP ,W186703
158
SCREW STOP BUFFER TO FRAME M 10X30
161
NUT SPRING CLAMP
999
SPACER AT REAR AXLE
