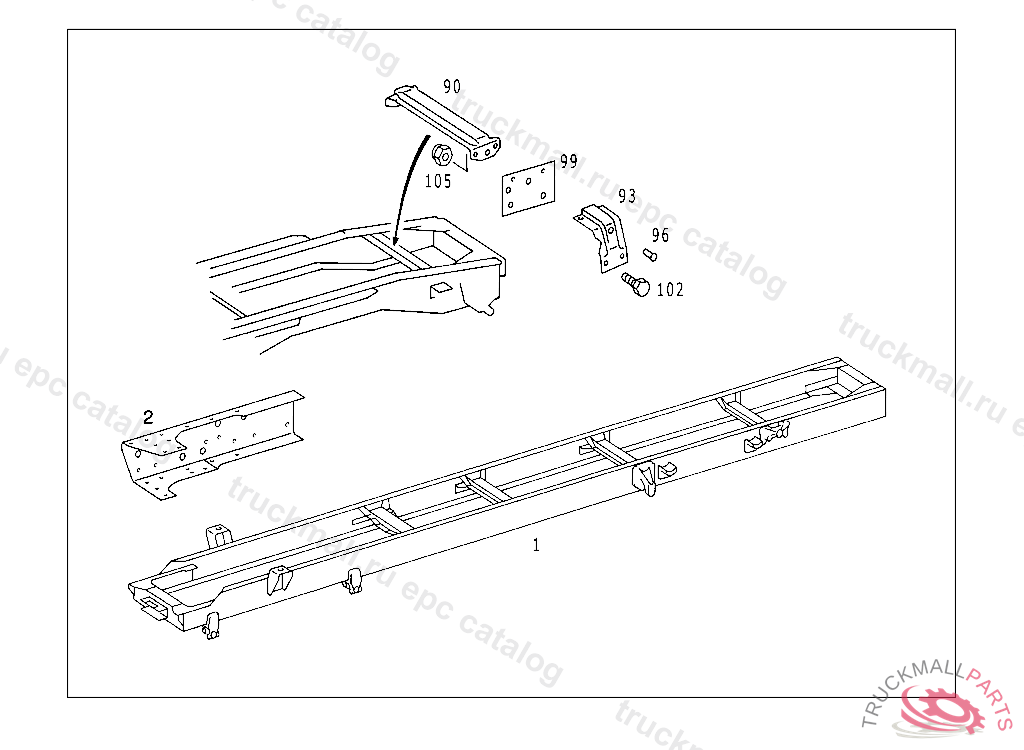

Поз.
Артикул
Описание
1
FRAME ,D 335154
1
FRAME
1
FRAME
1
FRAME
1
FRAME
1
FRAME ,D 335154
1
FRAME
1
FRAME ,D 335155
1
FRAME ,D 335154
1
FRAME ,D 335155
1
FRAME ,D 335155
1
FRAME
1
FRAME
1
FRAME
1
FRAME
1
FRAME
1
FRAME ,D 335155
1
FRAME
1
FRAME BRACKET TO SHOCK ABSORBER/STABILIZER BRACKET
1
FRAME
1
FRAME
1
FRAME
1
FRAME
1
FRAME ,D 335154
2
GUSSET PLATE LEFT BOTTOM
2
GUSSET PLATE RIGHT BOTTOM
2
GUSSET PLATE RIGHT BOTTOM
2
GUSSET PLATE LEFT BOTTOM
90
CROSS MEMBER ,D 105889
93
STRUT RIGHT,D 105889
93
STRUT LEFT,D 105889
96
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
99
SHIM STRUT TO CROSS MEMBER,D 105889
102
SCREW PROPELLER SHAFT BEARING TO CROSS MEMBER
105
NUT , Replaced By: N910113010002
999
BRACKET LEFT SHOCK ABSORBER
999
BRACKET RIGHT SHOCK ABSORBER
999
HELPER SPRING BRACKET LEFT REAR
999
HELPER SPRING BRACKET RIGHT REAR
999
BRACKET , Replaced By: A6953267140
999
BRACKET , Replaced By: A6953267340
