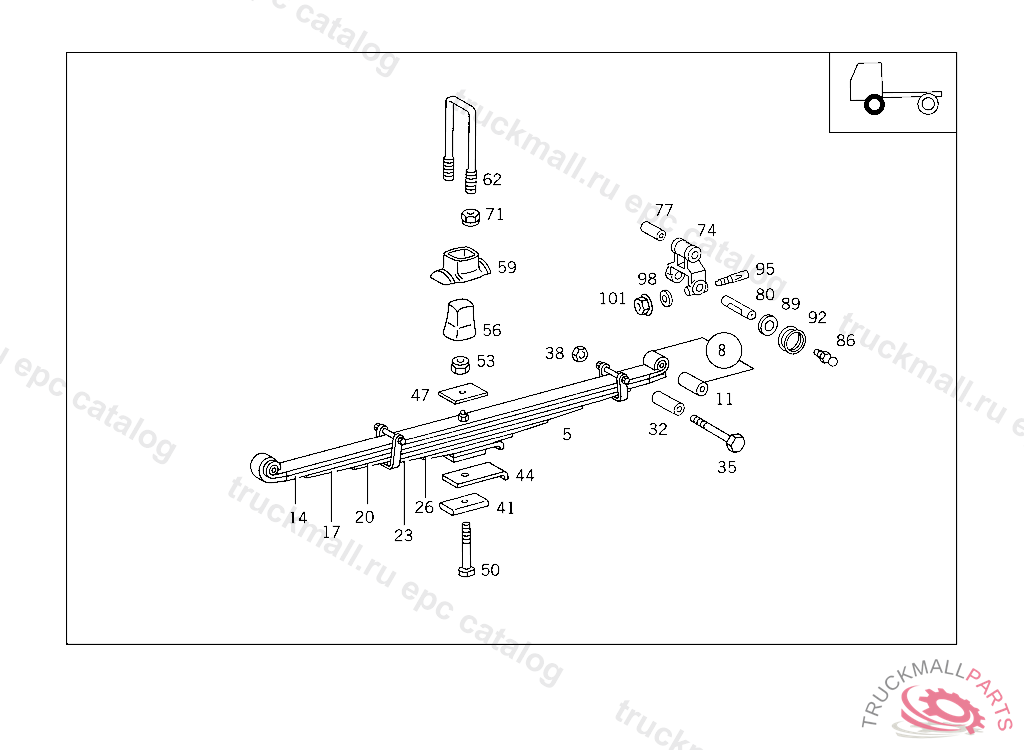

Поз.
Артикул
Описание
5
FRONT SPRING 8-LEAF,X188496
5
FRONT SPRING 6-LEAF,V126987X188495
8
FRONT SPRING PARTS KIT NO.1,X188496
8
FRONT SPRING PARTS KIT NO.1,V126987X188495
11
BUSHING
11
BUSHING
14
SPRING LEAFNO.2,X188496
14
SPRING LEAFNO.2,V126987X188495
17
FRONT SPRING PARTS KIT NO.3,X188496
17
FRONT SPRING PARTS KIT NO.3,V126987X188495
20
SPRING LEAFNO.4,X188496
20
SPRING LEAFNO.4,V126987X188495
23
SPRING LEAFNO.5,X188496
23
FRONT SPRING PARTS KIT NO.5,V126987X188495
26
FRONT SPRING PARTS KIT NO.6,X188496
32
SPACER TUBE , Replaced By: A0003213253
35
SCREW SPRING CLAMP TO SPRING LEAF NO.3,6
38
NUT LEVER TO SHIFTING SHAFT
41
SHIM ,X188495
44
SHIM ,X188495
47
SPACER
50
SPRING BOLTM12X160, TO 682 320 73 02, 74 02
53
NUT , Replaced By: N910113012005
56
RUBBER BUFFER
59
PLATE
62
U-BOLT FRONT SPRINGS TO FRONT AXLE 220 MM
62
U-BOLT FRONT SPRINGS TO FRONT AXLE 200 MM
62
U-BOLT FRONT SPRINGS TO FRONT AXLE 200 MM
71
NUT STABILIZER TO FRONT AXLE
74
SHACKLE FRONT SPRING SUSPENSION,REAR
77
BUSHING
77
BUSHING
80
SHACKLE PIN FRONT SPRING TO FRONT SPRING FRONT BRACKET
80
SHACKLE PIN FRONT SPRING TO FRONT SPRING FRONT BRACKET
80
SHACKLE PIN FRONT SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
86
GREASE NIPPLE
89
WASHER AS REQUIRED 4.20 MM
89
WASHER AS REQUIRED 4.2 MM
89
WASHER AS REQUIRED 4.00 MM
89
WASHER AS REQUIRED
92
SEAL RING SPRING SUSPENSION
95
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
98
WASHER GROUND CABLE
101
NUT BRACKET TO SIDE MEMBER,XB209706
999
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
999
SPRING BOLT FRONT SPRINGS TO FRONT AXLE M 12X150
