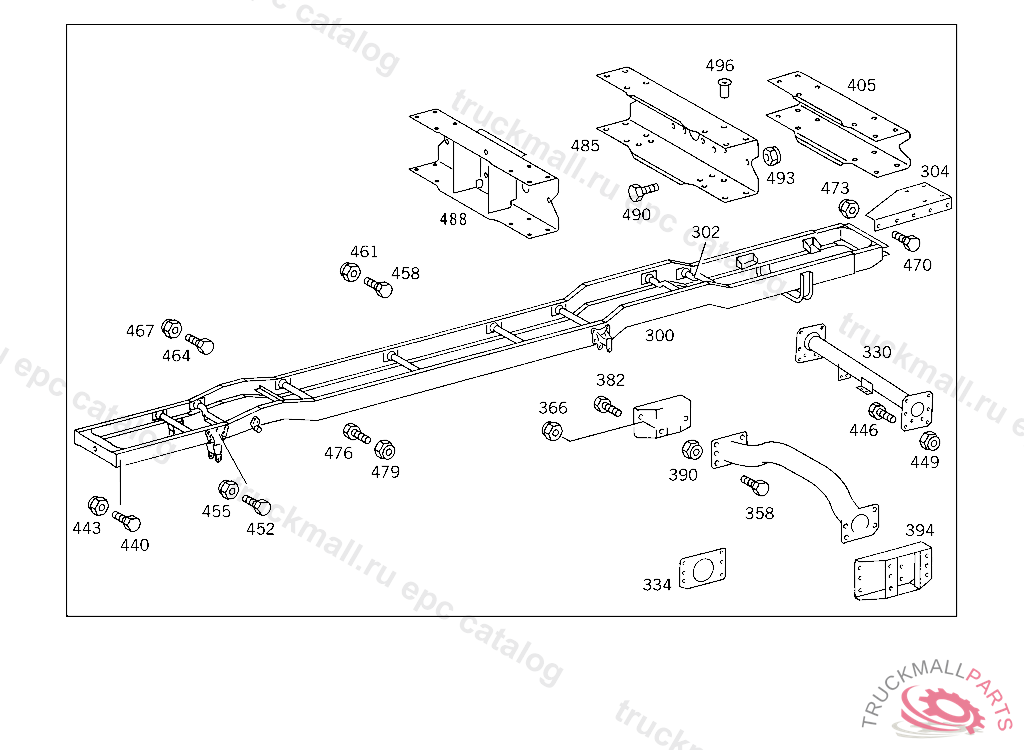

Поз.
Артикул
Описание
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
300
FRAME
302
CROSS MEMBERNR. 9
304
GUSSET PLATE TOP RIGHT
304
GUSSET PLATE TOP LEFT
330
CROSS MEMBERNO.7
334
SHIM GUSSET PLATE TO CROSS MEMBER 3 MM
334
SHIM GUSSET PLATE TO CROSS MEMBER 5 MM
358
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
358
SCREW BATTERY CASE
366
NUT ALTERNATOR TO SUPPORT
366
NUT , Replaced By: N910113014000
382
SCREW BATTERY CASE
390
NUT , Replaced By: N910113014000
394
BRACKET RIGHT
394
BRACKET LEFT
405
CROSS MEMBER (REAR CROSS MEMBER)
440
SCREW ANGLE TO CROSS MEMBER M 10X30
440
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
440
SCREW , Replaced By: N304017010040
443
NUT ALTERNATOR TO SUPPORT
443
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
446
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
446
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
446
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
446
SCREW CROSS MEMBER TO SIDE MEMBERS NO. 2, 7, 9
449
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
449
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
449
NUT ALTERNATOR TO SUPPORT
452
SCREW , Replaced By: N308676014012
452
SCREW , Replaced By: N308676014012
455
NUT , Replaced By: N910113014000
455
NUT , Replaced By: N910113014000
458
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
458
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
458
SCREW BRACKET TO REAR CROSS MEMBER
458
SCREW ANGLE TO CROSS MEMBER M 10X30
458
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
461
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
461
NUT ALTERNATOR TO SUPPORT
461
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
461
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
461
NUT ALTERNATOR TO SUPPORT
464
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
467
NUT ALTERNATOR TO SUPPORT
470
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
470
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
470
SCREW BRACKET TO REAR CROSS MEMBER
470
SCREW ANGLE TO CROSS MEMBER M 10X30
473
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
473
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
473
NUT ALTERNATOR TO SUPPORT
476
SCREW ANGLE TO CROSS MEMBER M 10X30
476
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
476
SCREW BATTERY CASE TO SIDE MEMBER
479
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
479
NUT , Replaced By: N910113014000
479
NUT ALTERNATOR TO SUPPORT
485
CROSS MEMBER (REAR CROSS MEMBER)
488
CROSS MEMBER (REAR CROSS MEMBER)
490
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
490
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
490
SCREW BRACKET TO FRAME
490
SCREW STEERING SUPPORT TO FRAME M 14X50
490
SCREW STEERING SUPPORT TO FRAME M 14X50
490
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER
490
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER
493
NUT BRACKET TO SIDE MEMBER M12X1.5
493
NUT , Replaced By: N910113014000
496
RIVET12X36 MM
496
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
496
RIVET SUPPORT TO SIDE MEMBER 14X30
496
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
496
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
496
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
496
RIVET12X36 MM
496
RIVET12X36 MM
496
RIVET12X36 MM
496
RIVET SUPPORT TO SIDE MEMBER 14X30
496
RIVET SUPPORT TO SIDE MEMBER 14X30
496
RIVET SUPPORT TO SIDE MEMBER 14X30
999
REINFORCEMENT BRACKET TO CROSS MEMBER,024208
999
FRAME
999
FRAME
999
FRAME
999
ANGLE LEFT
999
ANGLE RIGHT
999
BRACKET BRACKET TO CROSS MEMBER NO.4
999
SPRING LEAF
999
WASHER BRACKET TO FRAME
999
FRAME
999
BRACKET TO INTERMEDIATE SHAFT BEARING
999
FRAME
999
FRAME
999
FRAME ,D 426186
999
FRAME ,D 426186
999
FRAME ,D 426186
