Поз.
Артикул
Описание

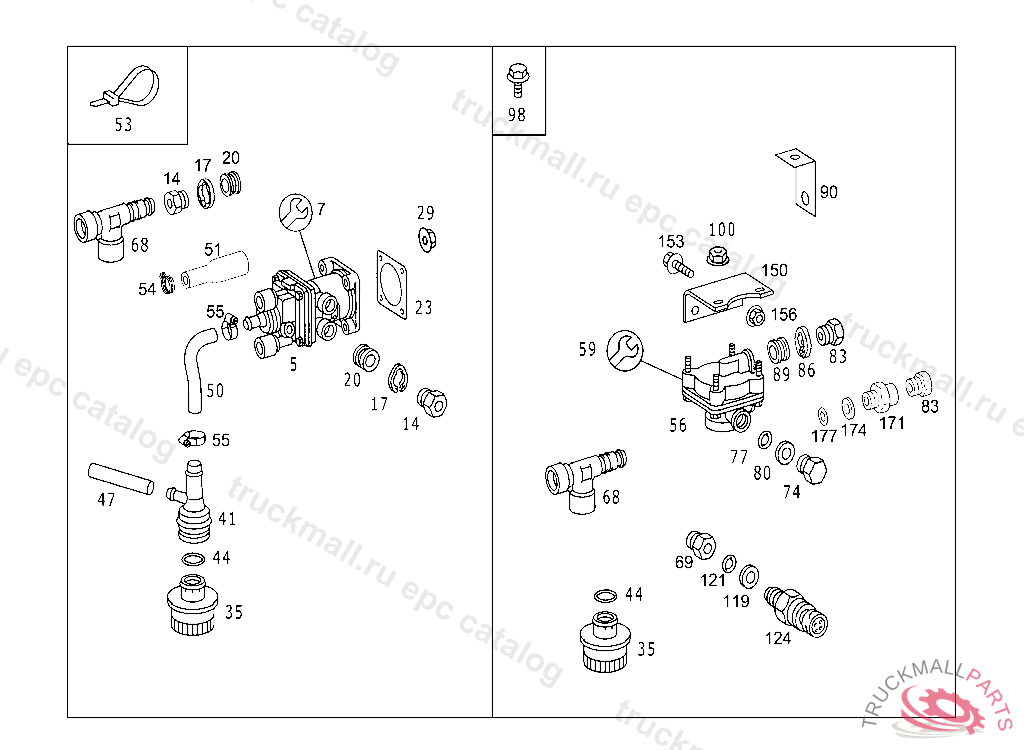

5
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE WABCO
7
7
14
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
14
SCREW. UNION SCREW LINE CONNECTION
17
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
20
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
23
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
23
GASKET BRAKE SHOE WITH LINING
29
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
35
MUFFLER VALVE BLEEDING
41
T-FITTING BETWEEN THE LINES
44
SEALING CORD SUCTION LINE TO OIL PUMP
47
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
50
HOSE HAND BRAKE VALVE
51
HOSE
53
LOOM TIE ELECTRIC CABLE MOUNTING
53
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
54
CLAMP FROM FILTER TO ENGINE DIAM. 22 MM
55
CLAMP , Replaced By: N000000000667
56
VALVE (RELAY VALVE) KNORR
56
VALVE (RELAY VALVE)
59
REPAIR KIT. VALVE REPAIR KIT TO 695 429 71 44
59
VALVE. PART NAME MISSING REPAIR KIT TO A 386 429 70 44
59
REPAIR KITTO 386 429 70 44
68
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
74
SCREW PLUG AT TANK
77
O-RING CHECK VALVE TO AIR RESERVOIR
80
THRUST RING CHECK VALVE TO AIR RESERVOIR
80
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
83
SCREW. UNION SCREW LINE CONNECTION
83
SCREW. UNION SCREW , Replaced By: A0009973734
86
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
86
LOCK , Replaced By: A0009945448
89
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
89
SEAL RING , Replaced By: A0009940747
90
BRACKET RELAY VALVE
98
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
100
NUT HORN TO BRACKET M8
171
FITTING LINE CONNECTION
174
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
177
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
