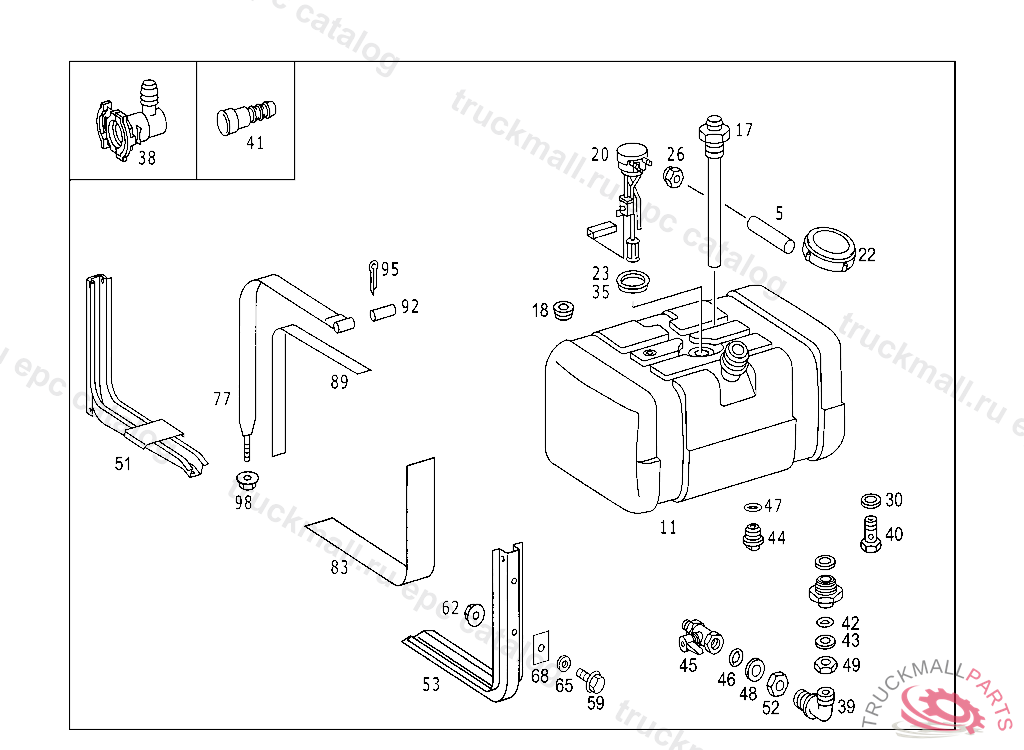

Поз.
Артикул
Описание
11
11
11
11
17
18
20
FUEL GAUGE DASH UNITTO A 695 470 00 01/01 03
22
FUEL FILLER CAPTO A 979 470 01 03,D 287970
23
SEAL RINGTO A 695 470 00 01/01 03
30
SEAL RING FUEL LINE TO FEED PUMP
39
ELBOW FITTING LEFT FUEL TANK
40
HOLLOW SCREW , Replaced By: N915036010108
41
CONNECTOR LINE CONNECTION
41
FITTING
42
SEAL RING LEFT FUEL TANK
43
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
43
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
43
THRUST RING LOCKING VALVE
44
SCREW PLUG FUEL TANK
44
FITTING VENT VALVE TO FUEL TANK
45
VALVE LEFT FUEL TANK
45
45
VALVE FUEL TANK
46
SEAL RING LEFT FUEL TANK
47
SEALING RING. SEAL RING FUEL TANK
47
SEAL RING FUEL STRAINER SCREEN
48
RING LEFT FUEL TANK
49
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
51
52
NUT ELECTRONIC ACCELERATOR PEDAL
53
SUPPORT FUEL TANK
59
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
62
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
65
WASHER BATTERY CASE
68
BASE
77
STRAP FUEL TANK TO SUPPORT
83
SHIM BRAKE ANCHOR
92
PIN STRAP TO CONSOLE
95
COTTER PIN STRAP TO SUPPORT
98
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
