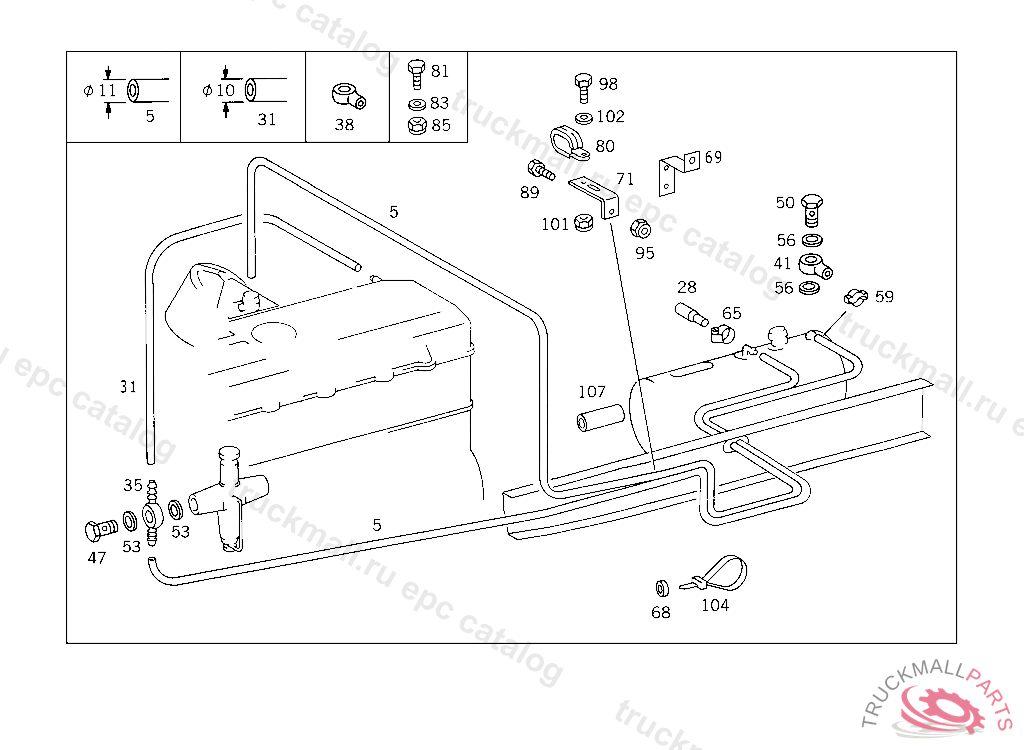

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
28
HOSE
28
HOSE SENDER UNIT
47
HOLLOW SCREW INJECTION PUMP
53
SEAL RING INJECTION PUMP
65
CLAMP , Replaced By: N000000000667
68
WASHER , Replaced By: A3609902340
68
WASHER BRACKET TO LEFT SIDE MEMBER
71
BRACKET BRACKET TO CROSS MEMBER
95
NUT , Replaced By: N910113014000
98
SCREW POWER CYLINDER TO BEARING BRACKET
104
LOOM TIE ELECTRIC CABLE MOUNTING
104
LOOM TIE CABLE TO ALTERNATOR
104
LOOM TIE LINE MOUNTING
104
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
104
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
107
INSULATING HOSE , ORDER BY THE METER
107
INSULATING HOSE CHECK VALVE,CONNECTION "2"
107
HOSE WITHE
