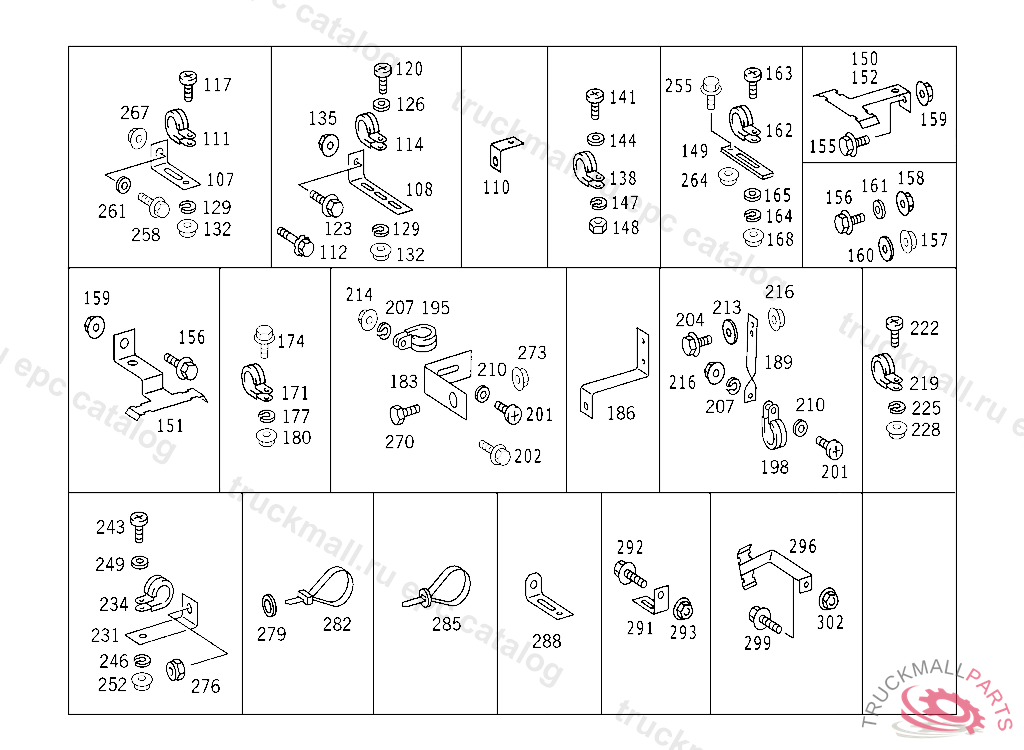

Поз.
Артикул
Описание
108
BRACKET TO ENGINE
111
CLAMP DE-AERATION LINE
111
CLAMP HEATING LINE AND ENGINE BREATHING TO BRACKET
117
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
120
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
126
WASHER PLUG SOCKET TO BRACKET
129
LOCK WASHER CABLE TO FUSE BOX
132
NUT BRACKET TO FIRE WALL
132
NUT BRACKET TO FIRE WALL
138
CLAMP
138
CLAMP COMPRESSED AIR LINE TO ENGINE CROSS MEMBER,D 216117
138
CLAMP COMPRESSED AIR LINE TO ENGINE CROSS MEMBER,D 216117
138
CLAMP SUCTION LINE TO CROSS MEMBER
141
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
147
LOCK WASHER CABLE TO FUSE BOX
148
NUT , Replaced By: N913023006001
151
BRACKET AT RIGHT SIDE MEMBER
152
BRACKET AT RIGHT SIDE MEMBER
155
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
155
SCREW SHIFT LEVER TO BRACKET M8X30
156
SCREW SHIFT LEVER TO BRACKET M8X30
156
SCREW POWER CYLINDER TO BEARING BRACKET
156
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
156
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
157
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
158
NUT HORN TO BRACKET M8
158
NUT HORN TO BRACKET M8
158
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
159
NUT HORN TO BRACKET M8
160
WASHER BRACKET TO CAB REAR PANEL
161
WASHER TRAILER PLUG SOCKET TO BRACKET
161
WASHER GROUND CABLE
168
NUT , Replaced By: N913023006001
222
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
225
LOCK WASHER CABLE TO FUSE BOX
228
NUT , Replaced By: N913023006001
231
BRACKET AT RIGHT SIDE MEMBER,D 149015
234
CLAMP , Replaced By: N916016010211
234
CLAMP HEATING LINE AND ENGINE BREATHING TO BRACKET
243
SCREW CONTROL UNIT
246
LOCK WASHER CABLE TO FUSE BOX
252
NUT , Replaced By: N913023006001
255
SCREW BRACKET TO CAB REAR PANEL M 8X20
258
SCREW BRACKET TO BUMPER,LEFT M 10X25
264
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
264
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
267
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
276
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
276
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
279
WASHER , Replaced By: A3609902340
282
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
282
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
282
LOOM TIE ELECTRIC CABLE MOUNTING
282
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
285
LOOM TIE LINE MOUNTING
999
INSULATION HEAT SHIELDS, NOT USED
999
GLAND , Replaced By: A0019901967
