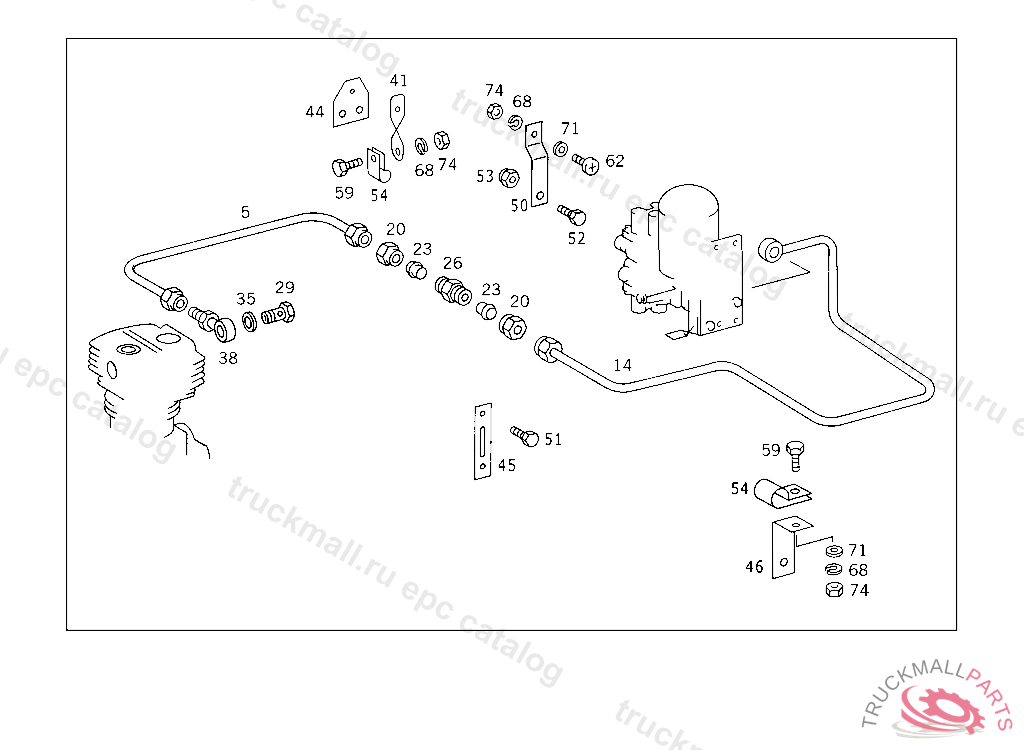

Поз.
Артикул
Описание
5
LINE ,D 204289
5
LINE , Replaced By: A6954202528, +001A6654297735
5
LINE AIR-COMPRESSOR-TO-FITTING COMPRESSED AIR LINE IN FRAME
5
LINE FROM AIR COMPRESSOR TO FITTING,B 981730
14
LINE FROM FITTING TO WATER SEPARATOR
14
LINE , Replaced By: A6954202628
14
LINE FROM FITTING TO WATER SEPARATOR,D 154571
20
UNION NUT LINE CONNECTION
23
GLAND LINE CONNECTION
26
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
29
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
35
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
38
BANJO UNION AT AIR COMPRESSOR "2",D 204289
38
BANJO UNION
41
BRACKET LINE MOUNTING
44
BRACKET COMPRESSED AIR LINE TO ENGINE CROSS MEMBER
46
BRACKET FUEL LINE TO SIDE MEMBER
50
BRACKET BATTERY CABLE
54
CLAMP , Replaced By: A6739950001
59
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
62
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
68
LOCK WASHER CABLE TO FUSE BOX
71
WASHER PLUG SOCKET TO BRACKET
74
NUT , Replaced By: N913023006001
999
BRAKE HOSE
