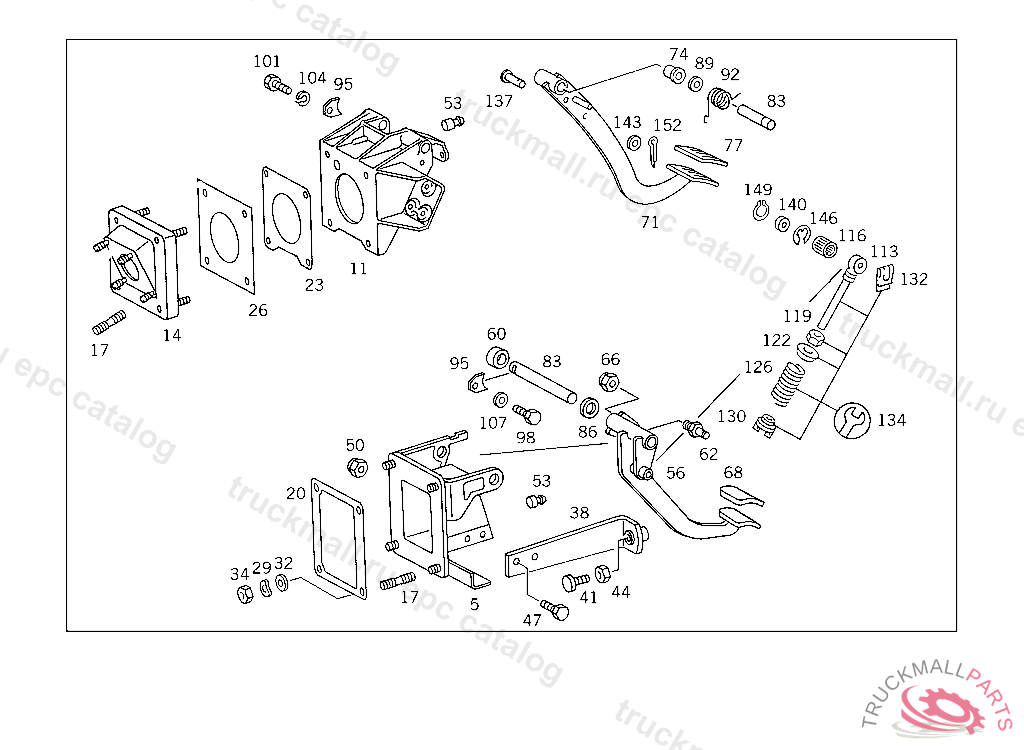

Поз.
Артикул
Описание
11
BEARING BRACKET BRAKE PEDAL
11
BEARING BRACKET , Replaced By: A3842947201
14
BRACKET SERVICE BRAKE VALVE
14
BRACKET SERVICE BRAKE VALVE
17
STUDM 8
17
SCREW. STUDM 8X25 MM
17
STUD COVER TO SHIFT CASE
20
GASKET , Replaced By: A6452940280
20
GASKET BEARING BRACKET TO CAB
23
GASKET BEARING BRACKET TO CAB
26
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
29
SPRING WASHER BRAKE SHOE WITH LINING
34
NUT BATTERY CASE
34
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
38
STOP CLUTCH PEDAL
41
STOP CLUTCH PEDAL STOP
44
NUT LEVER TO SHIFTING SHAFT
47
SCREW CLAMP TO BRACKET
50
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
53
STOP
53
STOP BRAKE PEDAL
60
NEEDLE BEARING
60
NEEDLE BEARING CLUTCH PEDAL
66
NUT AIR CLEANER ELEMENT
68
PAD , Replaced By: A1072910182
71
PEDAL BRAKE, NO.8650I.......I I I II .......INO.9985I I I II I
74
BUSHING , Replaced By: A1242920050
77
PAD , Replaced By: A1072910182
83
PIN CLUTCH PEDAL TO BEARING BRACKET
86
WASHER CLUTCH PEDAL TO BEARING BRACKET
89
SPACER WASHER BRAKE PEDAL TO BEARING BRACKET
92
SPRING BRAKE PEDAL TO BEARING BRACKET
95
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
98
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
101
SCREW BRACKET TO COVERING
104
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
107
WASHER PLUG SOCKET TO BRACKET
113
BEARING BRACKET
113
ROD , Replaced By: A3822908419
116
NEEDLE BEARING JOINT TO PIN
116
NEEDLE BEARING JOINT TO PIN
116
NEEDLE BEARING JOINT TO PIN
116
NEEDLE BEARING JOINT TO PIN
119
NUT GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
122
SPRING RETAINER SPRING TO PUSH ROD
130
SPRING RETAINER SPRING TO PUSH ROD
132
CLIP SPRING TO PUSH ROD
134
SPRING PARTS KIT
137
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
140
WASHER BRACKET TO FENDER BRACKET
143
WASHER , Replaced By: N000433010510
146
LOCK PLATE
149
LOCK RING PUSH ROD TO PEDAL
152
COTTER PIN PISTON ROD TO BRAKE PEDAL 3,2X20
