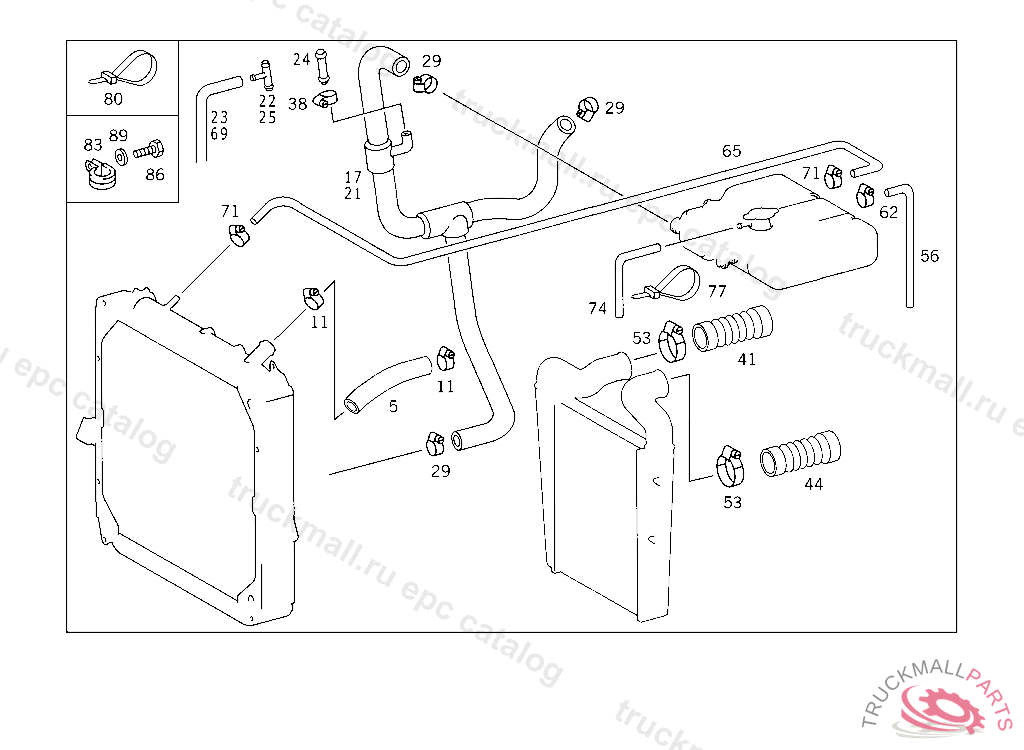

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO THERMOSTAT
11
CLAMP , Replaced By: N000000000671
17
HOSE FROM WATER PUMP TO RADIATOR,D 265968
17
HOSE FROM WATER PUMP TO RADIATOR,D 265969
29
CLAMP , Replaced By: N000000000671
38
CLAMP , Replaced By: N000000000667
41
HOSE CHARGE AIR COOLER TO ENGINE CIRCUIT'S HOT SIDE,D 173028
41
HOSE CHARGE AIR COOLER TO ENGINE CIRCUIT'S HOT SIDE,D 173028
44
HOSE CHARGE AIR COOLER TO ENGINE CIRCUIT'S COLD SIDE,D 173028
44
HOSE CHARGE AIR COOLER TO ENGINE CIRCUIT'S COLD SIDE,D 173028
53
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
53
LOOM TIE FROM CHARGING AIR INTERCOOLER TO ENGINE
56
HOSE FROM ENGINE TO EXPANSION TANK 12X21X340 MM
62
CLAMP HOSE TO FITTING AND TO OIL TANK
65
HOSE , Replaced By: A6945010082
65
HOSE FROM RADIATOR TO EXPANSION TANK 12X19X540 MM
69
HOSE AIR COMPRESSOR,D 204289
71
CLAMP HOSE TO FITTING AND TO OIL TANK
74
HOSE PARKING BRAKE VALVE
77
LOOM TIE , Replaced By: A3459977390
77
LOOM TIE ELECTRIC CABLE MOUNTING
77
LOOM TIE AIR INTAKE HOSE TO CLAMP
80
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
80
LOOM TIE
83
CLAMP SUCTION LINE TO CROSS MEMBER
83
CLAMP FROM MOLDED HOSE TO WATER PUMP
86
SCREW , Replaced By: A4609900601
89
WASHER , Replaced By: N000125008443
