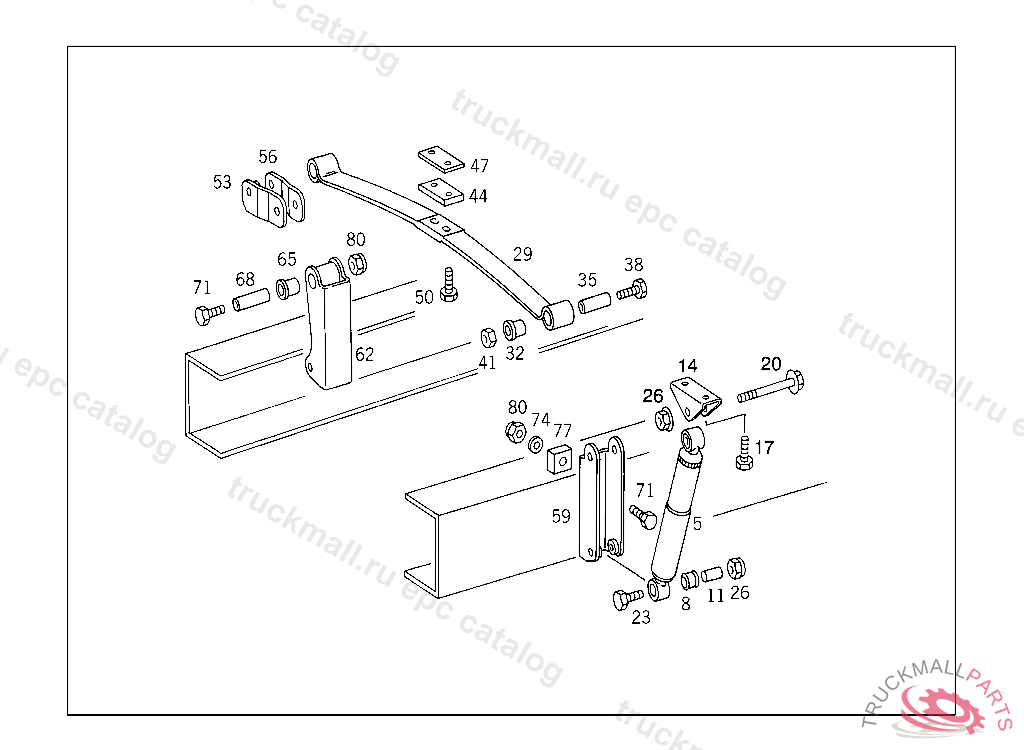

Поз.
Артикул
Описание
5
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION COFAP
5
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION NAKATA
8
RUBBER BUFFERTO 682 317 71 03
8
BUFFERTO 384 891 72 05
11
BUSHINGTO 384 891 70 05
11
BUSHINGTO 384 891 73 05
14
BRACKET SHOCK ABSORBER
17
HEXALOBULAR BOLT. SCREW SHOCK ABSORBER TO CAB M 10X25,D 135926
20
SCREW TORSION BAR TO SHACKLE,5 903514
23
SCREW SHIM TO BRACKET
23
HEXAGON HEAD BOLT SHOCK ABSORBER TO CONSOLE,BOTTOM M12X1.5X80
26
NUT BRACKET TO SIDE MEMBER M12X1.5
29
SPRING LEAF CAB SUSPENSION
32
SPACER RING
35
SPACER TUBE
38
HEXAGON HEAD BOLT TOWING EYE TO FRAME M12X1.5X100
38
SCREW STRUT TO BUMPER M 12X1.5X95
41
NUT SUPPORT TO SIDE MEMBER
41
NUT BRACKET TO SIDE MEMBER M12X1.5
41
NUT FUEL TANK TO SUPPORT
44
INTERMEDIATE PIECE SPRING TO CAB
47
PLATE
50
SCREW LEVER TO RELEASE SHAFT
53
SHACKLE RIGHT
56
SHACKLE LEFT
59
CONSOLE CAB SUSPENSION,REAR RIGHT
62
CONSOLE CAB SUSPENSION,REAR LEFT
65
SPACER RING
68
SPACER TUBE
71
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
74
WASHER
77
SHIM ,D 142684
80
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
