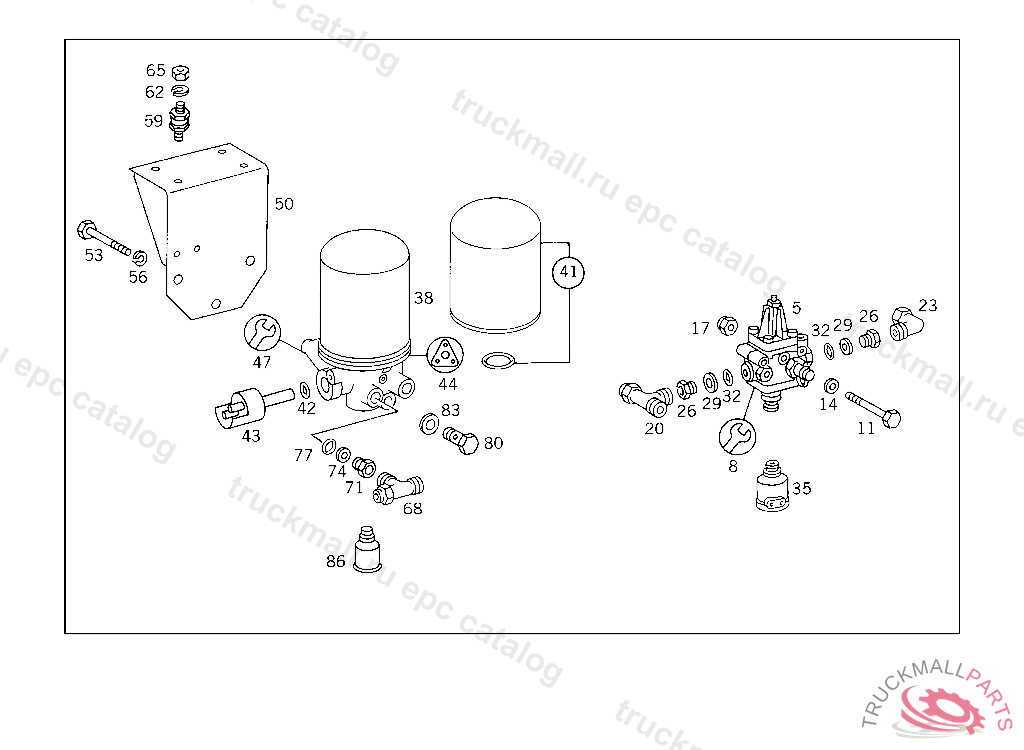

Поз.
Артикул
Описание
38
AIR DEHYDRATOR
38
AIR DEHYDRATOR , Replaced By: A0004319415
41
AIR CLEANER COMPLETE TO BOSCH,KNORR
41
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
42
SEAL RINGWABCO
43
HEATERWABCO
44
GASKET KITWABCO
44
SEAL RING , Replaced By: A0005480870
47
REPAIR KIT AIR DEHYDRATOR WABCO
50
BRACKET AIR DEHYDRATOR
53
SCREW CONSOLE TO SIDE MEMBER
56
LOCK WASHER FITTING TO BRACKET
59
RUBBER BUFFER COVERING TO FRAME
62
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
NUT , Replaced By: N304032008006
68
FITTING STEERING GEAR DELIVERY LINE,CIRCUIT II
71
FITTING AIR CLEANER,CONNECTION: "10,20"
74
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
77
O-RING CHECK VALVE TO AIR RESERVOIR
80
HOLLOW SCREW HEATING CONNECTION
83
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
86
MUFFLER AIR DEHYDRATOR
