Поз.
Артикул
Описание

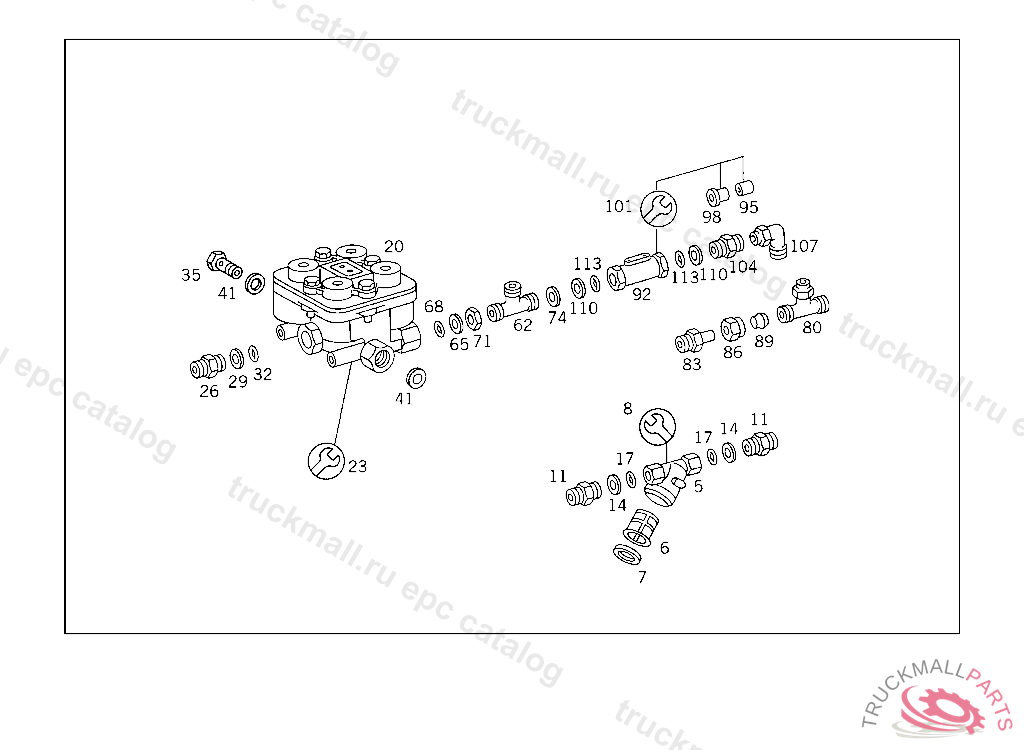

5
AIR CLEANER COMPRESSED AIR LINE
5
AIR CLEANER , Replaced By: A0004293895
6
FILTER ELEMENT
7
SEAL RING39.2X3.0 MM
7
SEAL RINGWABCO 000 0,36.2X3.0 MM
8
REPAIR KITWABCO 000 0
11
FITTING AIR CLEANER,CONNECTION: "10,20"
14
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
17
O-RING CHECK VALVE TO AIR RESERVOIR
20
VALVE , Replaced By: A0004318606
23
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
23
REPAIR KITTO 001 431 93 06,BOSCH 62201,K 087820
26
BULKHEAD FITTING THROUGH SIDE MEMBER
29
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
32
O-RING CHECK VALVE TO AIR RESERVOIR
35
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
41
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
62
T-FITTING BRAKE VALVE
65
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
68
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
71
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
74
SEAL RINGTO 000 553 03 05,000 553 18 05,
80
FITTING , Replaced By: A0019903170
83
FITTING RELAY VALVE,CONNECTION: "10",950459
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
GLAND , Replaced By: A0019901967
92
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
95
GASKET
98
BUSHINGWABCO,5 433388
101
REPAIR KITWABCO
101
REPAIR KIT CHECK TO 003 429 07 44
104
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
107
ELBOW FITTING DELIVERY LINE TO PUMP
110
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
113
O-RING CHECK VALVE TO AIR RESERVOIR
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING , Replaced By: A0019900970
999
FITTING AIR RESERVOIR,CONNECTION: "27"
999
FITTING CHECK VALVE,CONNECTION: "10",K 174076
999
FITTING DELIVERY LINE TO PUMP
999
T-FITTING POWER STEERING
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034315006
