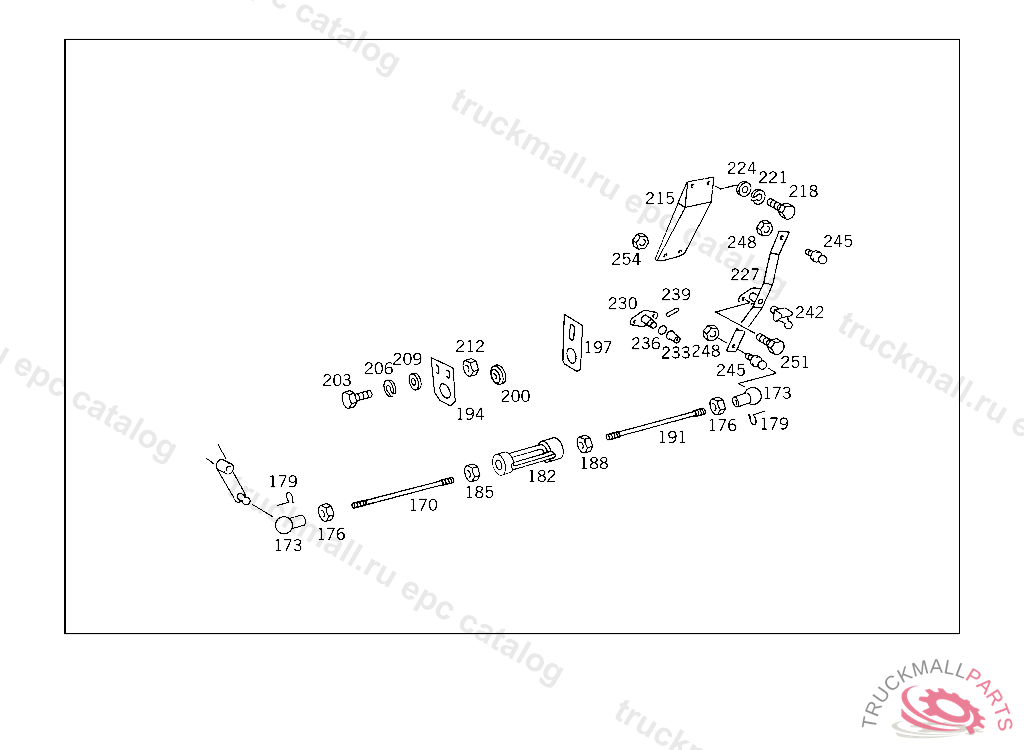

Поз.
Артикул
Описание
170
PULL ROD FROM LEVER II TO TURNBUCKLE NUT 2400 MM
173
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
176
NUT BALL PIVOT TO LEVER
179
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
182
TURNBUCKLE TURNBUCKLE
185
NUT BALL PIVOT TO LEVER
188
NUT L.H. THREAD
191
PULL ROD FROM TURNBUCKLE NUT TO LEVER III 2100 MM
194
BRACKET PULL ROD
197
BRACKET PULL ROD
200
BUSHING MANUAL CONTROL CABLE
203
SCREW , Replaced By: N304017008039
203
SCREW , Replaced By: N304017008021
206
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
209
WASHER , Replaced By: N000125008443
212
NUT BRACKET TO BATTERY/APPARATUS SUPPORT,5 579088
215
BRACKET INTERMEDIATE LEVER NO.3
218
SCREW , Replaced By: N304017016011
221
LOCK WASHERROCKINGER TYP 59 G140,59 G150
224
WASHER , Replaced By: N000125017016
227
LEVER (INTERMEDIATE LEVER) NO.3
230
PIN
233
BUSHING
236
SEAL RING
239
CYLINDRICAL PIN
242
GREASE NIPPLE FOR SPRING
245
BALL PIVOT ACCELERATOR PEDAL,4 859026
248
NUT BALL PIVOT TO LEVER
251
SCREW LEVER TO BRACKET
254
NUT BRACKET TO BATTERY/APPARATUS SUPPORT,5 579088
999
BRACKET LINE MOUNTING
